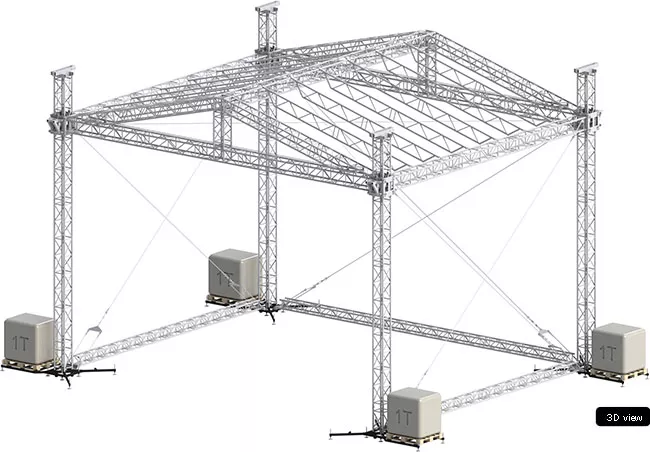

Alspaw Light Gable roof system
ALSPAW as trusses and stages producer, always provides best solutions which respect our customers time and ensure safety, that’s why we would like to present new Light line in Gable Roofs product series. Using relatively light trusses and small bases we achieved high and optimal user loads. Simplicity of each roof allows faster assembly and provides comfort of use.
Light roofs are made in four common sizes , which are widely used by all customers: 6,5m x 4,5m, 8,5m x 6,5m (whole made of HD3 290-Q) and 10,8m x 8,5m, 12,5m x 10,5m (whole made of HD3 390-Q). All roofs have latest static calculations, which are made according to newest Eurocodes (1,3,9) and DIN13814.
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
| Small | 6,5 x 4,5 m | 6,5 m | 4,5 m | 10,4 m | 7,0 m | 6,15 m |
| 8,5 x 6,5 m | 8,5 m | 6,5 m | 12,4 m | 9,0 m | 7,15 m | |
| Medium | 10,5 x 8,5 m | 10,5 m | 8,5 m | 14,5 m | 11,1 m | 8,15 m |
| 12,5 x 10,5 m | 12,5 m | 10,5 m | 16,5 m | 13,1 m | 9,15 m |
* Other dimensions according to the design created based on individual customer requirements.
** Approx. uniform distributed load (UDL), depending on configuration.
Small gable roof system
| Roof dimensions | 6,5 x 4,5 x 6,15 m, 8,5 x 6,5 x 7,15 m |
| Towers | HD3 290-Q |
| Main grid | HD3 290-Q |
| Compression beam | 290-Q |
| Load capacity (UDL) | 2000–2700 kg (depending on configuration) |
| Static calculations | included |
| Max. wind speed | ≤ 25m/s (with covers) |
| Design standards | Eurocode 1/3/9, DIN EN 13814, DIN 3834-2, DIN 1090-1-2-3 |
| Canopy | fire-resistant PVC, various colours |
| Scrims | Sides and back included (black/white); 70% visibility standard, 30% optional |
| Chain hoists | manual (standard) |
| Ballasts | included |
| Steel wires | included |
| Options | Side/back canopy, PA-Wings, PA-Arms (1.5m, 250kg), anemometr, stage platforms, electric hoist, truss lifter, custom dimensions |
Medium gable roof system
| Roof dimensions | 10,5 x 8,5 x 8,15 m, 12,5 x 10,5 x 9,15 m |
| Towers | HD3 390-Q |
| Main grid | HD3 390-Q |
| Compression beam | 290-Q |
| Load capacity (UDL) | 1690–2670 kg (depending on configuration) |
| Static calculations | included |
| Max. wind speed | ≤ 25m/s (with covers) |
| Design standards | Eurocode 1/3/9, DIN EN 13814, DIN 3834-2, DIN 1090-1-2-3 |
| Canopy | fire-resistant PVC, various colours |
| Scrims | Sides and back included (black/white); 70% visibility standard, 30% optional |
| Chain hoists | manual (standard) |
| Ballasts | included |
| Steel wires | included |
| Options | Side/back canopy, PA-Wings, PA-Arms (1.5m, 250kg), anemometr, stage platforms, electric hoist, truss lifter, custom dimensions |
