LD Systems Roadman 102 HS B5
The LD Systems Roadman 102 HS B5 is a mobile and compact sound system
The Roadman 102 HS B5 is a compact and mobile PA solution with integrated battery. This system is perfectly suitable for solo entertainers, churches, schools, business conferences or presentations where versatility is required. The Roadman comes with a CD/MP3/USB/SD Player as well as a wireless microphone unit. A second wireless microphone unit are also available in option.
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
General
| Product type | Battery-powered PA speaker |
| Version | Set with Handheld Transmitter |
| Low/mid Woofer dimensions | 10 “ |
| Woofer dimensions (mm) | 254 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| HF driver dimensions | 1 “ |
| HF driver dimention (mm) | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| Amplifier | Class D |
| RMS | 80 W |
| Peak power | 320 W |
| Frequency response | 70 – 16.000 |
| SPL (1W/1m) | 95 dB |
| Max. SPL | 115 dB |
| Protection circuits | Short circuit |

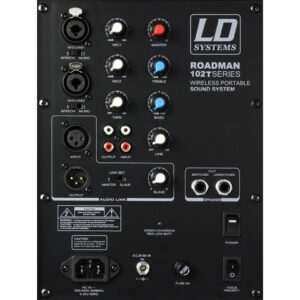

| Controls | Audio-Link Follower Volume, Volume Mic 2, Treble, Main, Speech / music switch (Mic / Line 1), Audio-Link Set ( Main / Follower), Voice priority on / off, Value Down, Volume Mic 1, Bass, Power, Line Gain, Speech / music switch (Mic / Line 2) |
| Indicators | Charge/battery status, Power |

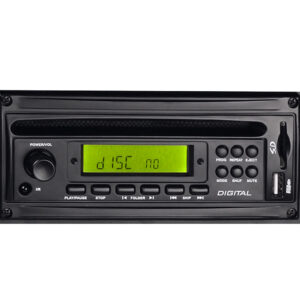

Media player
| Supported media | USB stick, CD-R/W, SD Card, Audio-CD, CD-R |
| Supported formats | Audio-CD, WMA-CD, MP3 file, MP3-CD, WMA file |
| Media player controls | Next Track, Previous Track, Program, Folder +, Stop, Power / Volume, mute, Play / Pause, CD ejector, Shuffle, Folder -, Mode (CD / SD / USB), Repeat |
| Media player display elements | Lighted multifunctional LC display |
| Line inputs | 3 |
| Line input connectors | 2 x RCA, Audio-link input XLR, female |
| Mic inputs | 2, 6.3 mm jack, XLR |
| Line outputs | 2 x sat output 100 Hz |
| Line output connectors | 2 x RCA, Audio-link output XLR, male |
| Loudspeaker outputs | Speaker Out Unswitched, Speaker Out Switched |
| Speaker output connections | 6.3 mm jack |
| Transmission frequency range | 584 – 607 MHz |
| Power supply | transformer |
| Operating voltage | 200 V AC – 250 V AC, 24 V DC – 32 V DC (5A) |
| Rechargeable batteries | 2 x 12 V / 4.5 AH |
| Cabinet material | Plastic, Aluminium |
| Cabinet construction | Bass Reflex |
| Width | 355 mm |
| Height | 610 mm |
| Depth | 315 mm |
| Weight | 19 kg |
| Other features | Transport bag available optionally, Transport casters, transport handle, Trolley handle, Stand mount 36 mm, Audio-link function, additional radio receiver (LDRM102R) available optionally |
