LD Systems ROADBUDDY 10 HS
Description
ROADBUDDY 10 HS
The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.
The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 – 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.
For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

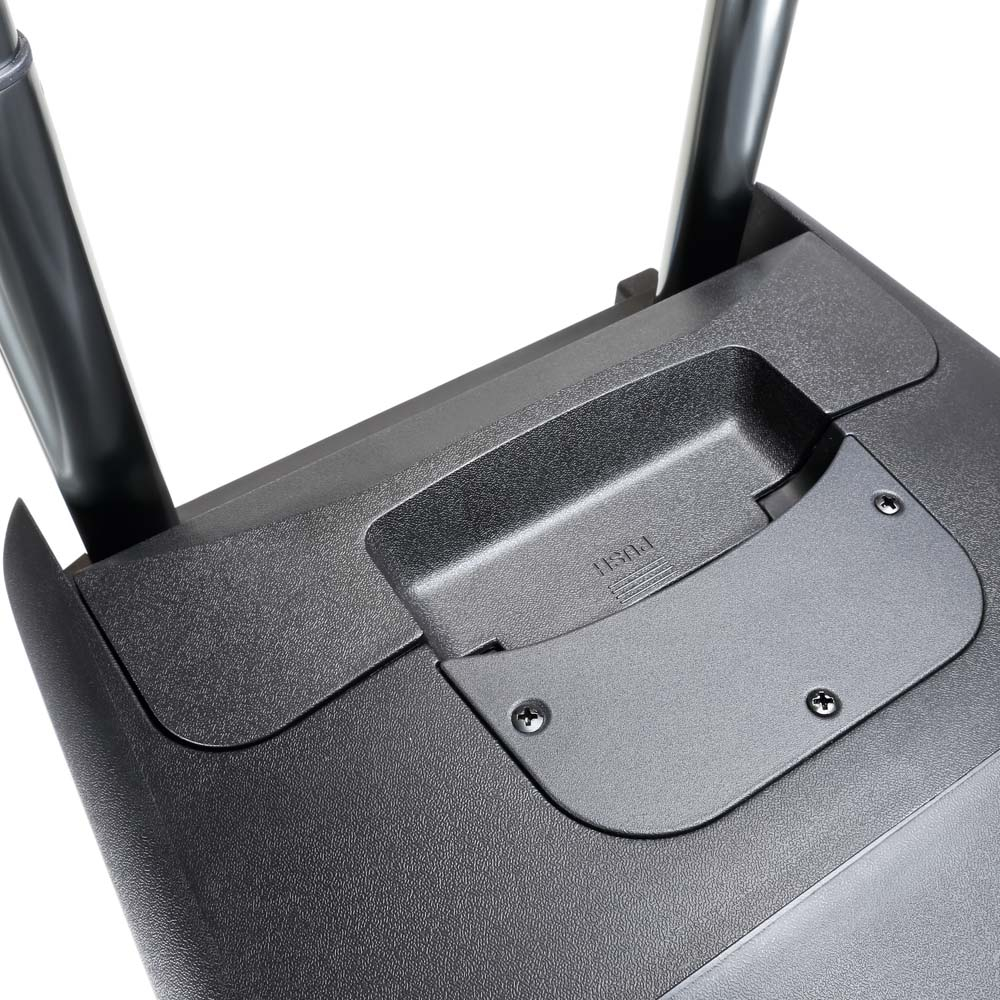

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
General
Product type | Battery-powered PA speaker |
Low/mid Woofer dimensions | 10 “ |
Woofer dimensions (mm) | 254 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
HF driver dimensions | 1 “ |
HF driver dimention (mm) | 25.4 mm |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
Amplifier | Class D |
RMS | 120 W |
Peak power | 480 W |
Frequency response | 55 – 19000 |
SPL (1W/1m) | 96 dB |
Max. SPL | 115 dB |
Protection circuits | Short circuit, over-current, overload protection |
Controls | low, AUX / MP3 switch, Mic 2 Level, Echo, Master Volume, high, CD / Tape IN Level, Mic 1 Level |
Indicators | Power, Charge/battery status |
Power supply | Switching power supply |
Operating voltage | 220 V – 240 V AC / 50 Hz, 100 V – 120 V / 60 Hz |
Rechargeable batteries | 12 V / 5 Ah |
Cabinet material | Polypropylene |
Cabinet construction | Bass Reflex |
Width | 415 mm |
Height | 525 mm |
Depth | 328 mm |
Weight | 16.5 kg |
Other features | IR Remote for Media Player, Stand mount 36 mm, extendable handle, Transport casters, transport handle |
Media player
Supported media | SD Card, Bluetooth, USB stick |
Supported formats | WMA file, MP3 file, WAV-CD |
Media player controls | Mode (Menu / Bluetooth /SD / USB), Stop, Next Track, Play / Pause, Previous Track, Repeat, equalizer |
Media player display elements | Lighted multifunctional LC display |
Line inputs | 1 |
Line input connectors | 6.3 mm jack, 2 x XLR, 2 x RCA, 3.5 mm jack |
Mic inputs | 2, 6.3 mm jack, 2 x XLR |
Wireless Unit
Transmission frequency range | 863 – 865 MHz |
Modulation Type | FM |
Channels | 16 |
Frequency Response Wireless Unit | 50 – 17000 Hz |
Controllers Wireless Unit | Value Up, ASC, Power / Volume, Value Down, Mute Level (Squelch) |
Indicators Wireless Unit | AF (LED), RF (LED), LED Display |
Connections Wireless Unit | nTNC for receiver antenna |
RF Transmitter Power Output | 10 mW |
Bodypack weight | 0.08 kg |
Bodypack material | ABS plastic |
