LD Systems ROADBUDDY 10 HS B5
Description
ROADBUDDY 10 HS B5
The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

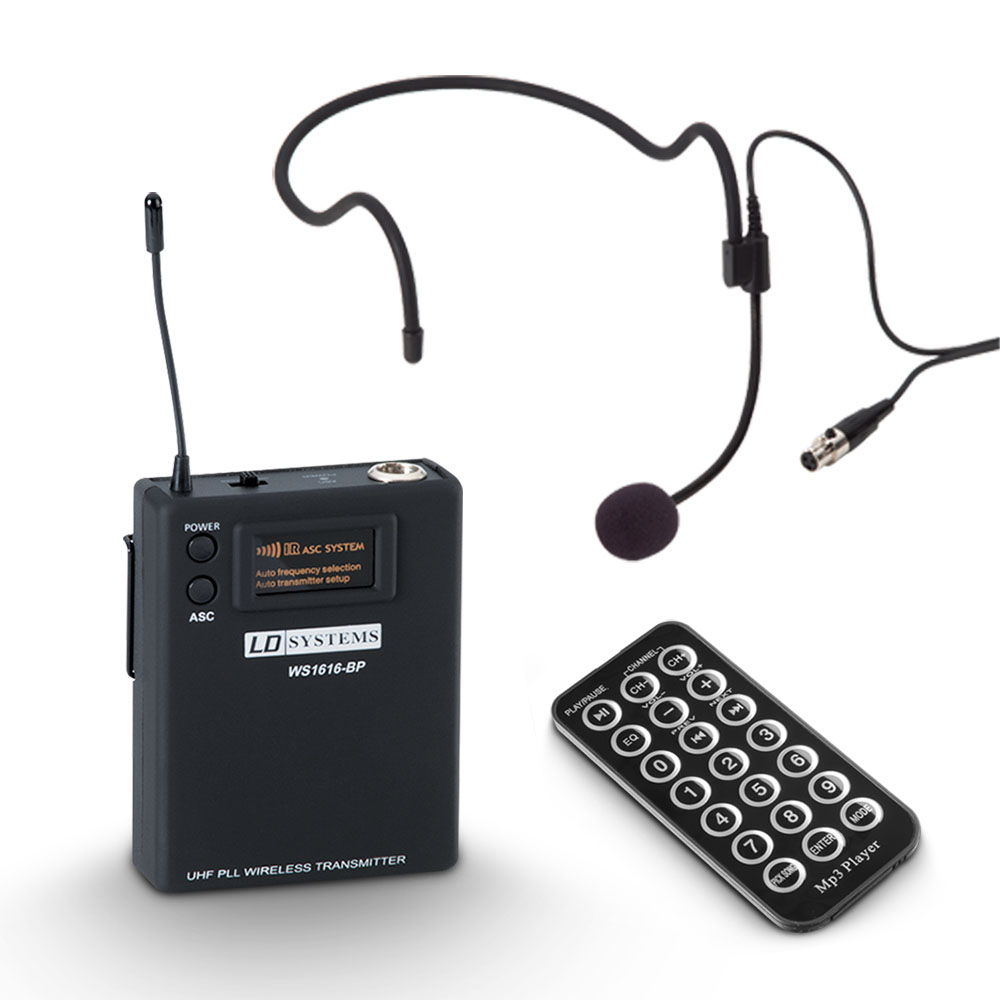

The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the 584 -607 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10B5) or as an alternative a headset microphone with belt pack (LDRBUD10HSB5) and an IR-remote control for the player are included.
For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.
The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
General
| Product type | Battery-powered PA speaker |
| Low/mid Woofer dimensions | 10 “ |
| Woofer dimensions (mm) | 254 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| HF driver dimensions | 1 “ |
| HF driver dimention (mm) | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| Amplifier | Class D |
| RMS | 120 W |
| Peak power | 480 W |
| Frequency response | 55 – 19000 |
| SPL (1W/1m) | 96 dB |
| Max. SPL | 115 dB |
| Protection circuits | over-current, overload protection, Short circuit |
| Controls | AUX / MP3 switch, Master Volume, Echo, high, Mic 1 Level, Total volume, CD / Tape IN Level, low, Mic 2 Level |
| Indicators | Power, Charge/battery status |
| Power supply | Switching power supply |
| Operating voltage | 100 V – 120 V / 60 Hz, 220 V – 240 V AC / 50 Hz |
| Rechargeable batteries | 12 V / 5 Ah |
| Cabinet material | Polypropylene |
| Cabinet construction | Bass Reflex |
| Width | 415 mm |
| Height | 525 mm |
| Depth | 328 mm |
| Weight | 16.5 kg |
| Other features | transport handle, Stand mount 36 mm, Transport casters |
Media player
| Supported media | Bluetooth, SD Card, USB stick |
| Supported formats | WAV-CD, MP3 file, WMA file |
| Media player controls | Previous Track, equalizer, Next Track, Repeat, Play / Pause, Mode (Menu / Bluetooth /SD / USB), Stop |
| Media player display elements | Lighted multifunctional LC display |
| Line inputs | 1 |
| Line input connectors | 2 x XLR, 6.3 mm jack, 2 x RCA, 3.5 mm jack |
| Mic inputs | 2, 2 x XLR, 6.3 mm jack |
Wireless Unit
| Transmission frequency range | 584.000 – 607.000 MHz |
| Modulation Type | FM |
| Channels | 16 |
| Frequency Response Wireless Unit | 50 – 17000 Hz |
| Controllers Wireless Unit | ASC, Mute Level (Squelch), Value Down, Power / Volume, Value Up |
| Indicators Wireless Unit | AF (LED), LED Display, RF (LED) |
| Connections Wireless Unit | nTNC for receiver antenna |
| RF Transmitter Power Output | 10 mW |
| Bodypack weight | 0.08 kg |
| Bodypack material | ABS plastic |
