LD Systems ROADBUDDY 10 HHD 2 B6

Description

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

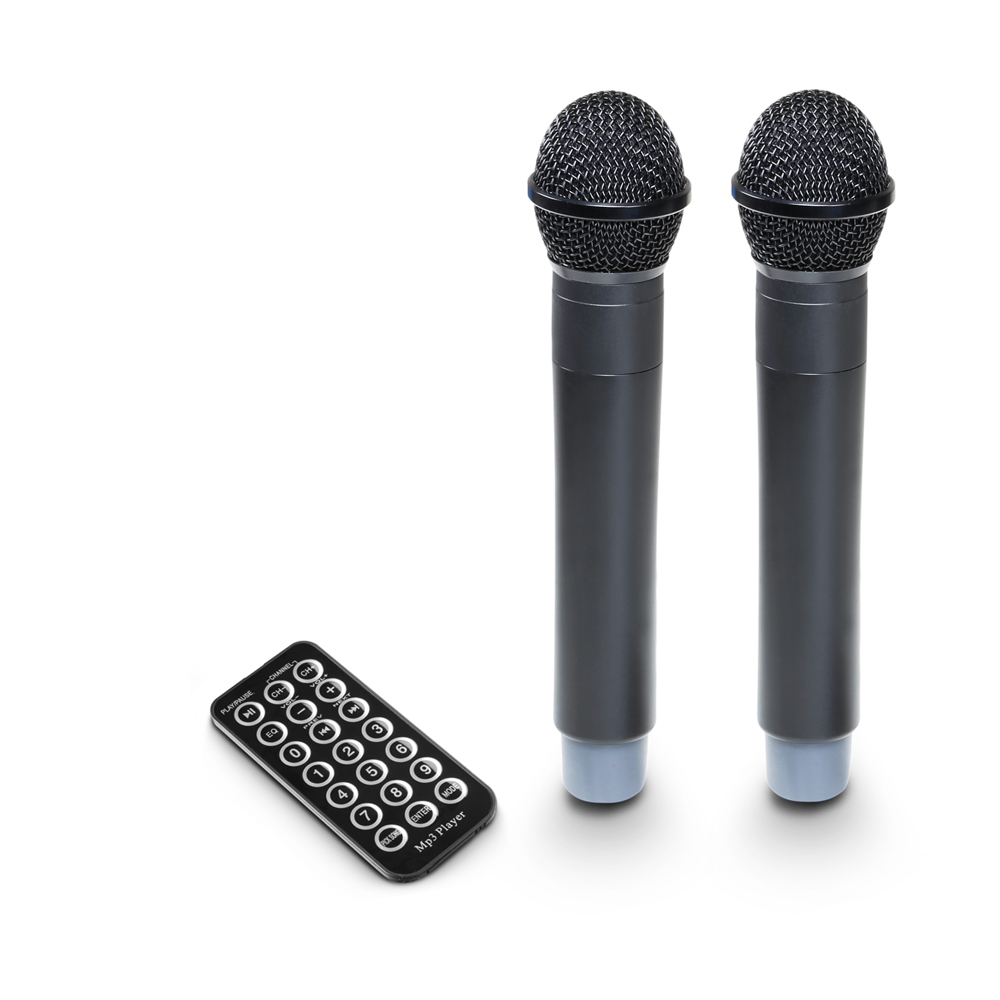

The Roadbuddy relies fully on wireless transmission: it has two UHF radio receiver who operates with 655 – 679 MHz range. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. Two handheld microphone with 10 mW output power(LDRBUD10HHD2B6), two headset microphones with belt pack (LDRBUD10BPH2B6) or as an alternative a handheld microphone and a headset microphone with belt pack (LDRBUD10HBH2B6) and an IR-remote control for the player are included.

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.

Teirautis telefonu

+37069873838

darius@combo.lt

Availability: Išankstinis užsakymas Categories , , Tags ,

Aprašymas

Specifications

General

Product type Battery-powered PA speaker
Low/mid Woofer dimensions 10 “
Woofer dimensions (mm) 254 mm
Woofer magnet Ferrite
Woofer brand Custom-made
HF driver dimensions 1 “
HF driver dimention (mm) 25.4 mm
HF driver magnet Ferrite
HF driver brand Custom-made
Amplifier Class D
RMS 120 W
Peak power 480 W
Frequency response 55 – 19000
SPL (1W/1m) 96 dB
Max. SPL 115 dB
Protection circuits over-current, overload protection, Short circuit
Controls Mic 2 Level, Echo, Mic 1 Level, CD / Tape IN Level, high, low, Total volume, AUX / MP3 switch
Indicators Charge/battery status, Power

Media player

Supported media USB stick, SD Card
Supported formats WAV-CD, MP3 file, WMA file
Media player controls Repeat, Play / Pause, Next Track, Mode (Menu / Bluetooth /SD / USB), equalizer, Previous Track, Stop
Media player display elements Lighted multifunctional LC display
Line inputs 1
Line input connectors 6.3 mm jack, 2 x XLR, 3.5 mm jack, 2 x RCA
Mic inputs 2, 6.3 mm jack, 2 x XLR

Wireless Unit

Transmission frequency range 655 – 679 MHz
Modulation Type FM
Channels 16
Frequency Response Wireless Unit 50 – 17000 Hz
Controllers Wireless Unit Value Up, Power / Volume, Mute Level (Squelch), Value Down, ASC
Indicators Wireless Unit AF (LED), LED Display, RF (LED)
Connections Wireless Unit nTNC for receiver antenna
RF Transmitter Power Output 10 mW
Handheld Microphone Weight 0.285 kg
Handheld Microphone Material Aluminium

Other Specifications

Power supply Switching power supply
Operating voltage 220 V – 240 V AC / 50 Hz, 100 V – 120 V / 60 Hz
Rechargeable batteries 12 V / 5 Ah
Cabinet material Polypropylene
Cabinet construction Bass Reflex
Width 415 mm
Height 525 mm
Depth 328 mm
Weight 17.2 kg
Other features transport handle, extendable handle, Transport casters, IR Remote for Media Player, Stand mount 36 mm
