LD Systems ROADBUDDY 10 HBH 2 B5
Description

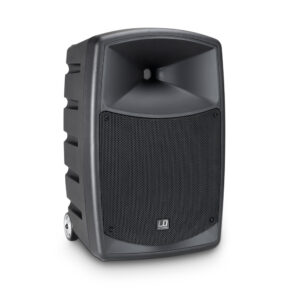

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10″ custom woofer and a 1″ compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.
The Roadbuddy relies fully on wireless transmission: it has two UHF radio receiver which operates in the 584 -607 MHz range. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. Two handheld microphone with 10 mW output power(LDRBUD10HHD2B5), two headset microphones with belt pack (LDRBUD10BPH2B5) or as an alternative a handheld microphone and a headset microphone with belt pack (LDRBUD10HBH2B5) and an IR-remote control for the player are included.

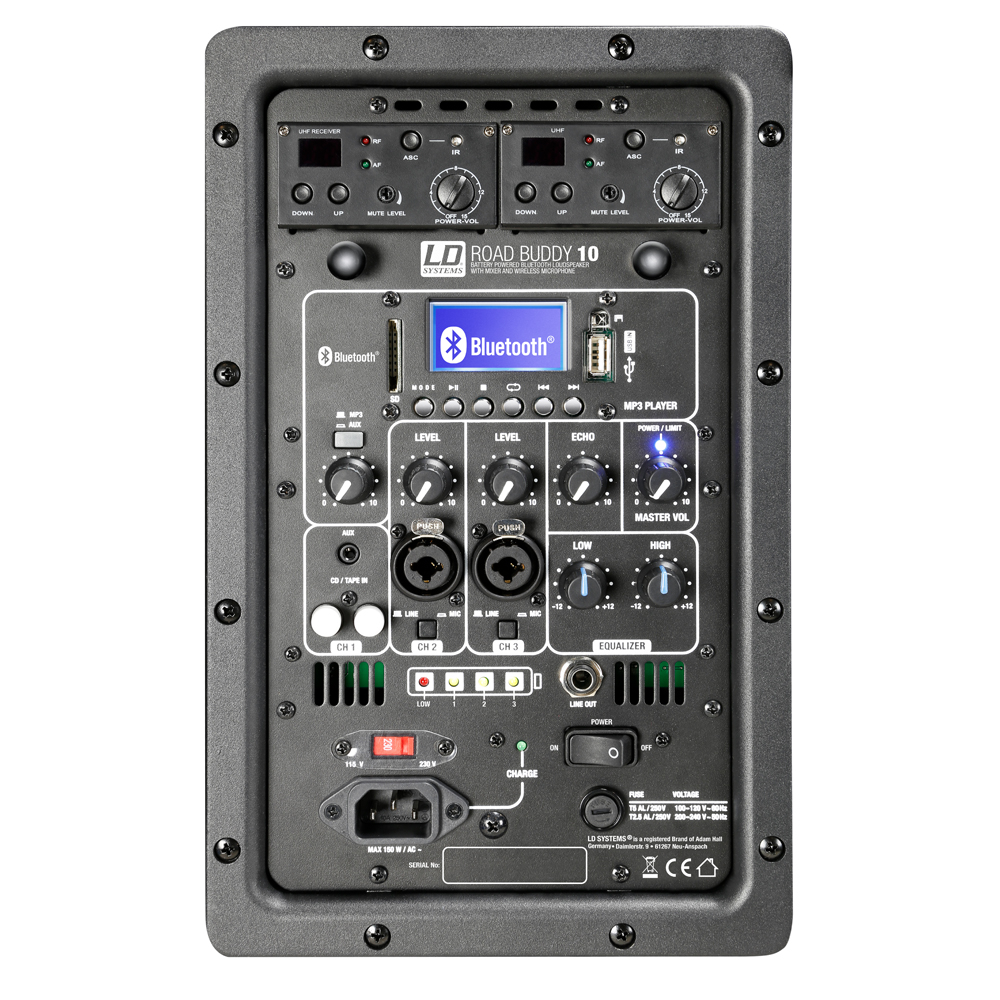

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.
The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
General
Product type | Battery-powered PA speaker |
Low/mid Woofer dimensions | 10 “ |
Woofer dimensions (mm) | 254 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
HF driver dimensions | 1 “ |
HF driver dimention (mm) | 254 mm |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
Amplifier | Class D |
RMS | 120 W |
Peak power | 480 W |
Frequency response | 55 – 19000 |
SPL (1W/1m) | 96 dB |
Max. SPL | 115 dB |
Protection circuits | over-current, overload protection, Short circuit |
Controls | high, Total volume, Mic 1 Level, Echo, low, AUX / MP3 switch, CD / Tape IN Level, Mic 2 Level |
Indicators | Power, Charge/battery status |
Media player
Supported media | USB stick, Bluetooth, SD Card |
Supported formats | WMA file, MP3 file, WAV-CD |
Media player controls | Next Track, Stop, Repeat, Mode (Menu / Bluetooth /SD / USB), Play / Pause, Previous Track, equalizer |
Media player display elements | Lighted multifunctional LC display |
Line inputs | 1 |
Line input connectors | 2 x XLR, 6.3 mm jack, 2 x RCA, 3.5 mm jack |
Mic inputs | 2, 6.3 mm jack, 2 x XLR |
Wireless Unit
Transmission frequency range | 584 – 607 MHz |
Modulation Type | FM |
Channels | 16 |
Frequency Response Wireless Unit | 50 – 17000 Hz |
Controllers Wireless Unit | Power / Volume, Value Up, Value Down, Mute Level (Squelch), ASC |
Indicators Wireless Unit | AF (LED), RF (LED), LED Display |
Connections Wireless Unit | nTNC for receiver antenna |
RF Transmitter Power Output | 10 mW |
Handheld Microphone Weight | 0.285 kg |
Handheld Microphone Material | Aluminium |
Bodypack weight | 0.08 kg |
Bodypack material | ABS plastic |
Power supply | Switching power supply |
Operating voltage | 220 V – 240 V AC / 50 Hz, 100 V – 120 V / 60 Hz |
Rechargeable batteries | 12 V / 5 Ah |
Cabinet material | Polypropylene |
Cabinet construction | Bass Reflex |
Width | 415 mm |
Height | 525 mm |
Depth | 328 mm |
Weight | 16.5 kg |
Other features | transport handle, Transport casters, IR Remote for Media Player, extendable handle, Stand mount 36 mm |
