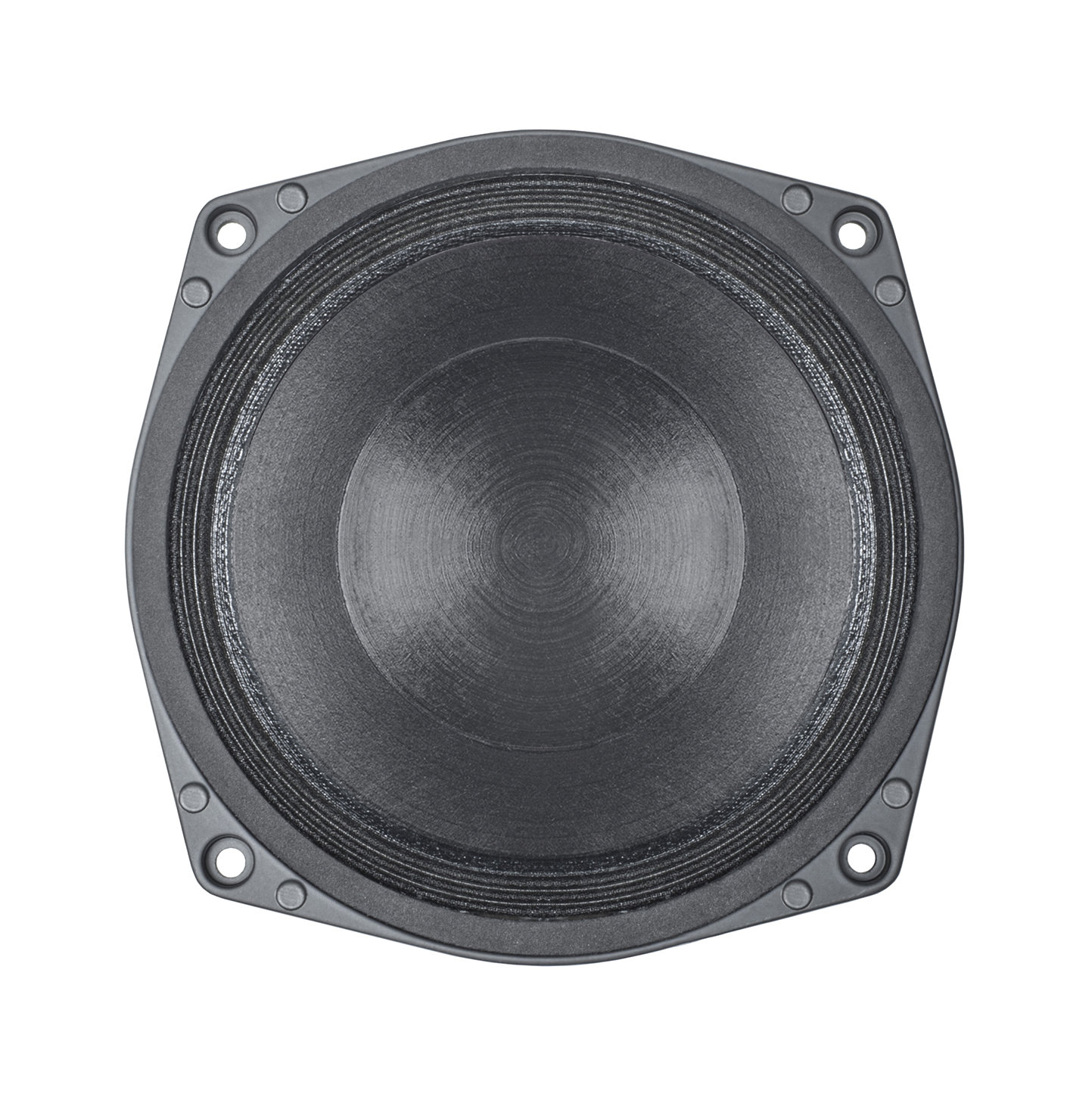

6″ B&C Midrange NSM51

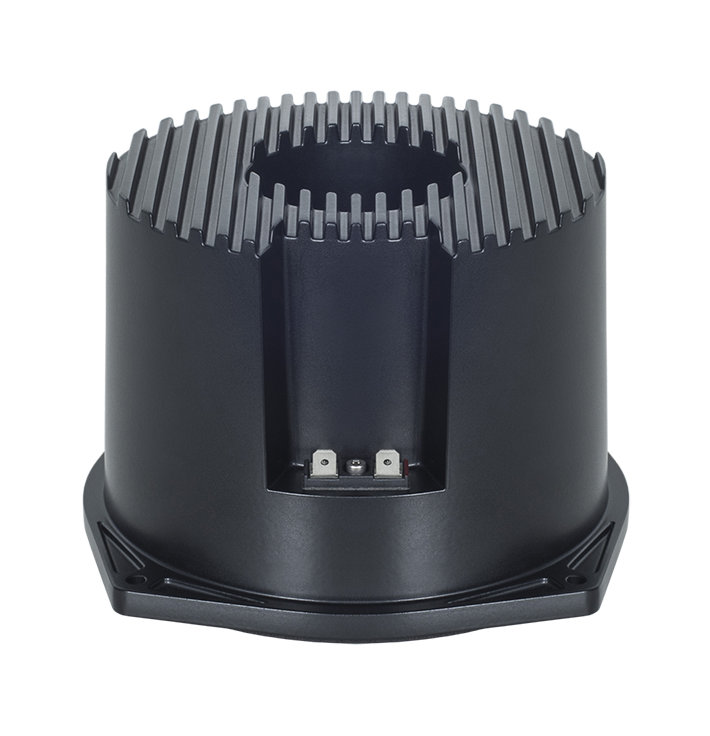

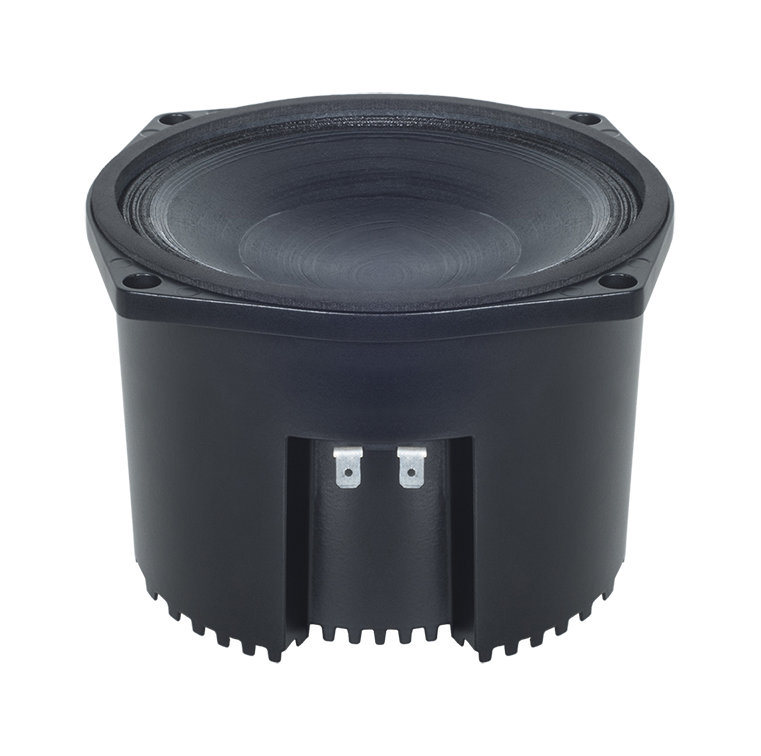

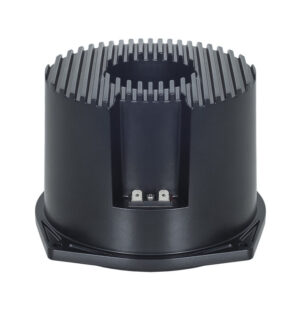

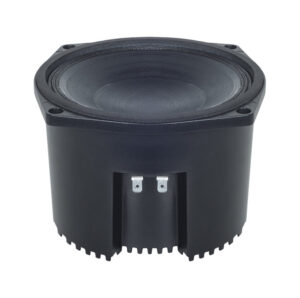

For simplified cabinet assembly and efficient thermal transfer to the air, our NSM series of sealed back midranges feature a cast aluminum sealed chassis, high strength neodymium motor, and large internal volume for good low frequency performance. Large voice coils provide power handling, while careful selection of suspension and cone components results in exceptional sensitivity. These dedicated narrow-bandwidth midranges offer the lowest distortion at given output of any midrange available.
Key Features
- 500 W continuous program power capacity
- 51 mm (2 in) aluminium voice coil
- 300 – 6000 Hz response
- 100 dB sensitivity
- Ideal for Direct Radiation and Horn Loaded Midrange application
- Aluminium demodulating ring for Extremely Low Distortion
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Nominal Diameter: 170 mm (6.5 in)
Minimum Impedance: 6.6 Ω
Continuous Power Handling: 500 W

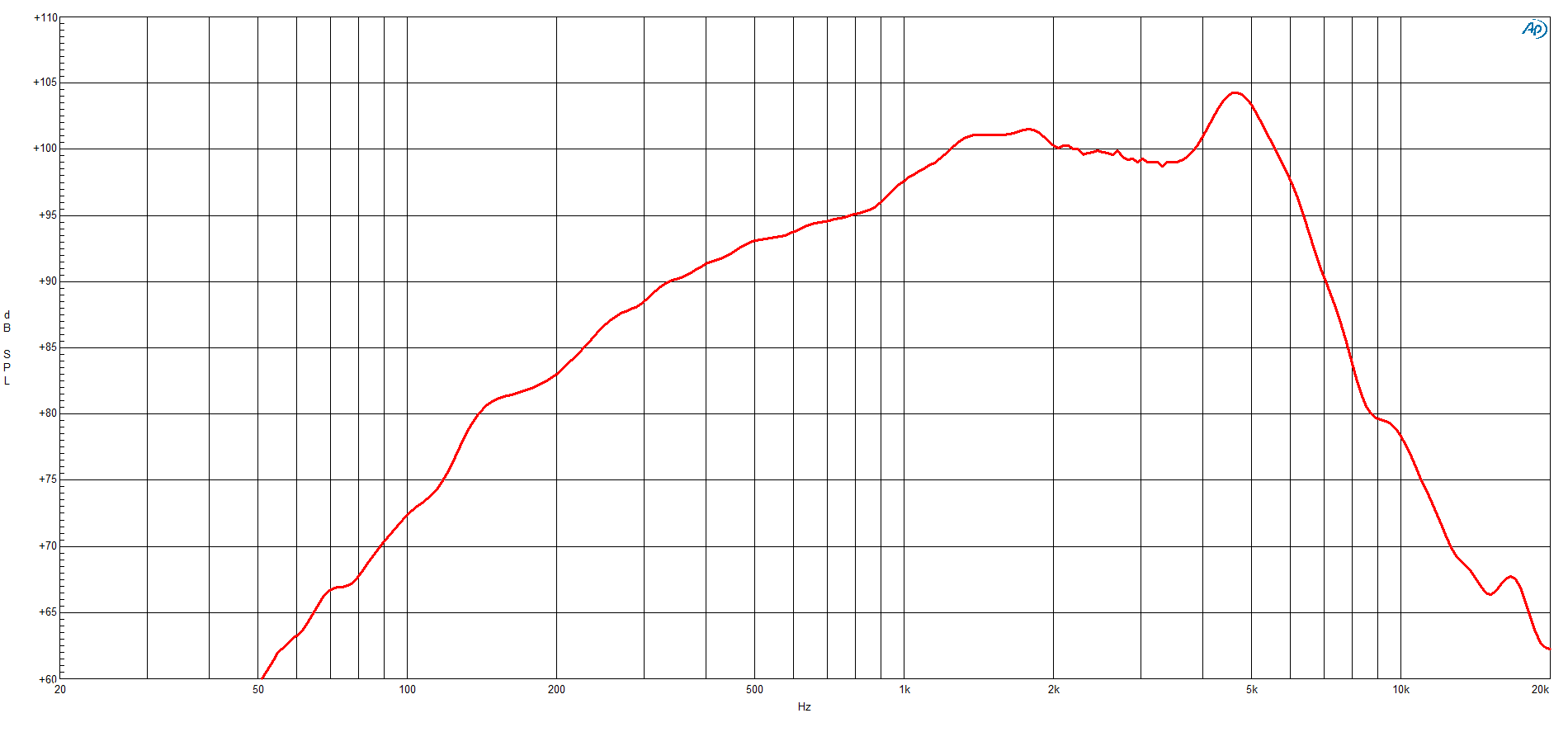

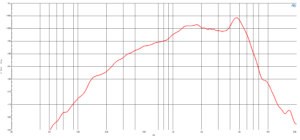

Frequency Range: 300 Hz – 6000 Hz
Winding Material: Aluminium
Winding Depth: 8.5 mm (0.33 in)
Flux Density: 1.6 T
Nominal Impedance: 8 Ω
Nominal Power Handling: 250 W
Sensitivity: 100 dB
Voice Coil Diameter: 51 mm (2 in)
Former Material: Glass Fibre
Magnetic Gap Depth: 6 mm (0.24 in)
Woofer Cone Treatment: WP Waterproof Front Side
Parameters
Fs: 280 Hz
Qes: 0.68
Qts: 0.6
Sd: 143 cm² (22.17 in²)
Xmax: 2.8 mm
Mms: 13.5 g
Le: 0.15 mH
Re: 5.4 Ω
Qms: 5.4
Vas: 0.7 dm³ (0.02 ft³)
η₀: 2.2%
Xvar: 3 mm
Bl: 13.9 Tm
EBP: 412 Hz
Design
Surround Shape: Triple Roll
Magnet Material: Neodymium Ring
Pole Design: T-Pole
Cone Shape: Radial
Spider: Single
Woofer Cone Treatment: WP Waterproof Front Side

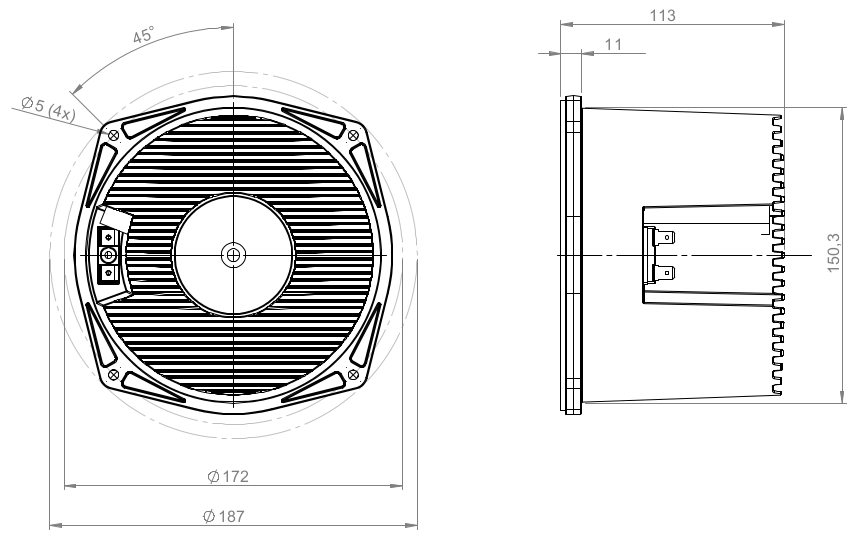

Mounting and Shipping Info
Overall Diameter: 187 mm (7.36 in)
Baffle Cutout Diameter: 151 mm (5.94 in)
Flange and Gasket Thickness: 11 mm (0.43 in)
Net Weight: 2.25 kg (4.96 lb)
Shipping Weight: 2.48 kg (5.46 lb)
Bolt Circle Diameter: 172 mm (6.77 in)
Depth: 113 mm (4.45 in)
Air Volume Occupied by Driver: 2 dm³ (0.07 ft³)
Shipping Units: 1 pcs
Shipping Box: 210x180x150 mm (8.27×7.09×5.91 in)
Service Kit
Recone Kit: RCK06NSM518
Cone
Gasket
Centering Shims
