2″ B&C DE1085TN 8Ω|16Ω
The DE1085TN is the latest version of our premium 100mm (4.0 in) voice coil, neodymium high frequency driver. The diaphragm in this model has been completely redesigned to incorporate a bent edge voice coil former as well as new dome and surround geometry. These modifications combine to better control diaphragm displacement and deformations, resulting in lower distortion and a smoother higher frequency response above 10kHz.
Key Features
- 280 W continuous program power capacity
- 2″ horn throat diameter
- 100 mm (4 in) CCAW voice coil
- Titanium diaphragm

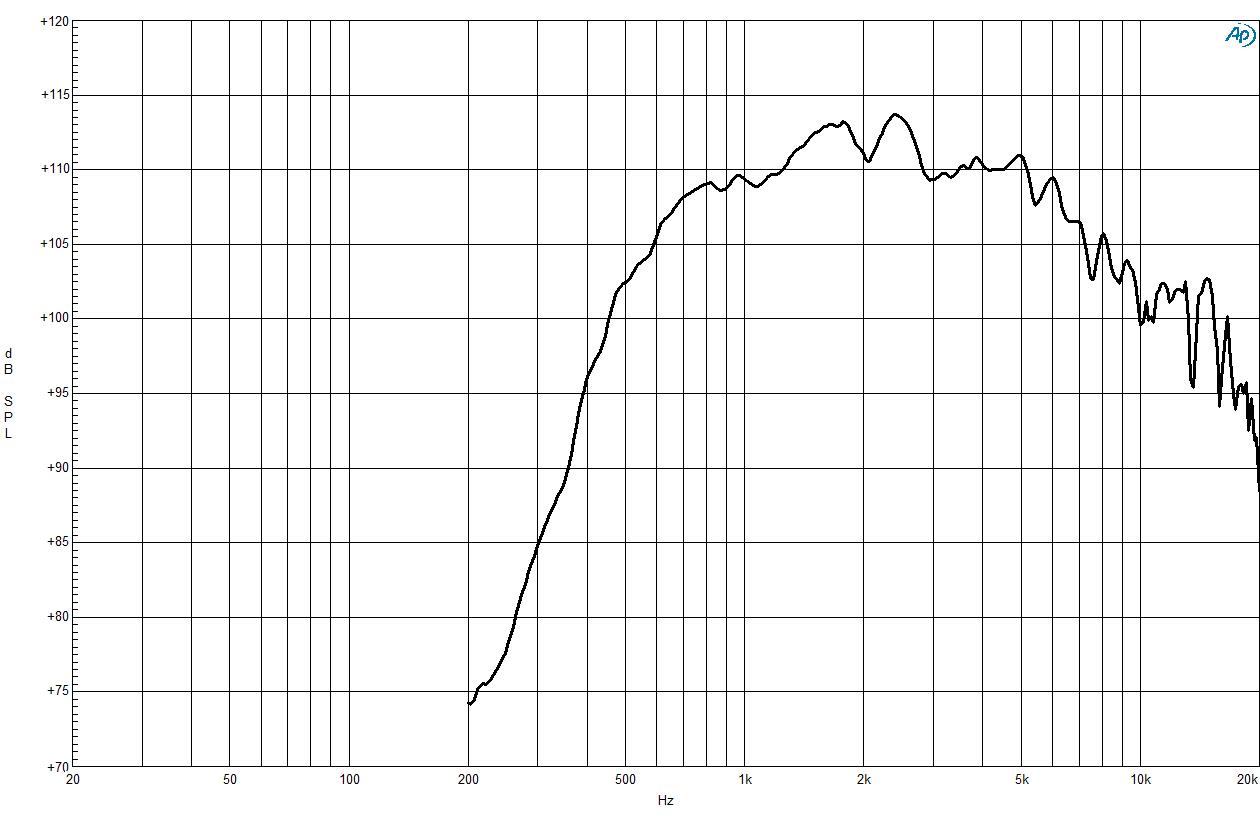

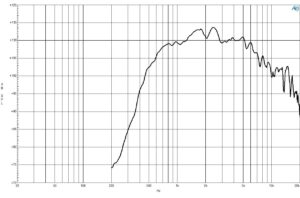

- 500 – 20000 Hz response
- 109 dB sensitivity
- Neodymium magnet assembly with shorting copper cap
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Throat Diameter: 50 mm (2 in)

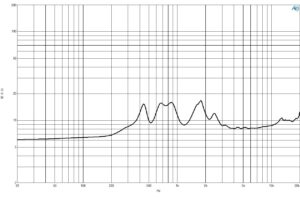

Nominal Impedance: 8 Ω
Minimum Impedance: 8 Ω
Nominal Power Handling: 140 W
Continuous Power Handling: 280 W
Sensitivity: 109 dB
Frequency Range: 0.5 kHz – 20 kHz
Recommended Crossover: 0.8 kHz
Voice Coil Diameter: 100 mm (4 in)
Winding Material: Aluminium
Inductance: 0.18 mH
Flux Density: 1.95 T
Diaphragm Material: Titanium
Min Frequency Range: 0.5 Hz
Max Frequency Range: 20 Hz
Mounting and Shipping Info
Mounting: Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter: 154 mm (6.1 in)
Depth: 86 mm (3.39 in)
Net Weight: 3.7 kg (8.16 lb)
Shipping Units: 1 pcs
Shipping Weight: 4 kg (8.82 lb)
Shipping Box: 190x190x120 mm (7.48×7.48×4.72 in)
Service Kit
hf Replacement Diaphragm: MMD4BTN8M
