| Output power 1kHz (THD+N=1%: 4Ω) |
280W x 4 |
| Output power 1kHz (THD+N=1%: 8Ω) |
280W x 4 |
| Output power 1kHz (THD+N=1%: 4Ω / Double Power Mode) |
560W x 2 |
| Output power 1kHz (THD+N=1%: 8Ω / Double Power Mode) |
560W x 2 |
| High impedance: 100V line |
250W x 4 / 40 Ω |
| High impedance: 70V line |
250W x 4 / 20 Ω |
| Voltage Gain RL=8Ω |
31.7dB |
| Voltage Gain RL=8Ω / Double Power Mode |
34.7dB |
| Voltage Gain 100V |
38.2dB |
| Voltage Gain 70V |
35.2dB |
| Power consumption |
1/8 power (4 Ω pink noise): 250W, Idle (4 Ω): 37W, Standby: 18.5W |
| Total harmonic distortion |
≤ 0.2% (1kHz, half power) |
| Frequency response |
0dB, ±1.0dB (RL=8Ω, 100V/70V, Po=1W, 20Hz – 20kHz) |
| S/N ratio |
≥ 100dB(A-weighted) |
| Crosstalk |
≤ -60dB |
| Input sensitivity |
+4dBu |
| Input impedance |
20kΩ (balanced), 10k Ω (unbalanced) |

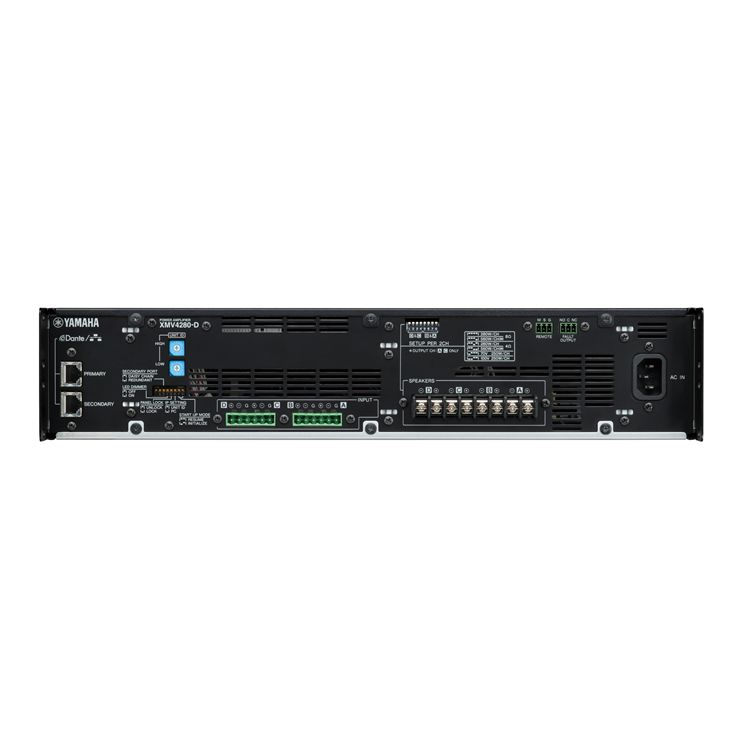

| I/O Connectors |
Analog I/O: Input: Euroblock x 2 (6P, balanced) |
| Digital I/O |
RJ45 x 2 (Dante PRIMARY / SECONDARY) |
| Speaker Output |
Barrier strip x 4 pairs |
| Control ports |
Remote, Fault Output: Euroblock (3P) x 1 |
| Network |
Shared with Dante ports, RJ45 x 1 |
| Others |
AC Inlet x 1 |
| Input Level |
+24dBu (Maximum) |
| Protection Circuit |
Load protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting |
| Amplifier protection |
Thermal: Output mute (heatsink temp ≥90°C), Overcurrent: Output mute, Low load impedance: Output mute |
| Power supply protection |
Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C), Integrated power: Gain reduction |
| Cooling |
3-Speed fan x 2, front-to-back airflow |
| Power requirements |
100V, 120V, 230V-240V; 50Hz/60Hz |
| Dimensions |
W: 480mm (18.9″), H: 88mm (3.5″), D: 422mm (16.6″) |
| Net weight |
8.1kg (17.9lbs) |
