Stunningly Simple. Impressively Professional.

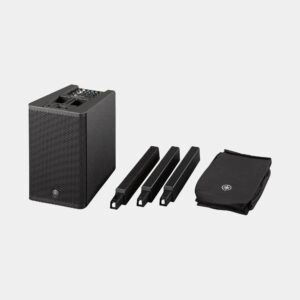

The STAGEPAS 1K is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage. Delivering professional level audio performance with a setup so simple it enables aspiring artists to focus on their music and get the most out of their performances. The STAGEPAS 1K surpasses other portable PAs with the highest standard of sound quality and sound pressure, lightweight cabinet design, professional mixing functions, and simple operability. By adopting a concert-quality mixer and speaker, we have defined a new standard for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.
Simple setup and simple control allows you to focus on your performance
The STAGEPAS 1K comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like “Speech” or “Music” to match various applications. All adjustments can be done simply with one knob, which makes getting the perfect mix fast and easy with no need to learn a complex workflow and allows you to focus on your performance without worrying about time-consuming parameter adjustment.
Best-in-Class Compact Power
A 1000 W amplifier drives the array speaker with 10 small-diameter 1.5″ units, as well as a class-leading 12″ subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.
| Category | STAGEPAS 1K |
|---|---|
| Type | Powered subwoofer with a line array speaker |
| Mixing channels | 5 (3 mono + 1 ST) |
| Input channel functions | Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST |
| Output channel functions | MODE (SPEECH – MUSIC – CLUB) |
| Inputs | 3 mono mic/line + 1 stereo line / 2 mono line |
| Outputs | 1 Link out, 1 Monitor out |
| Bluetooth | Bluetooth Ver.5.0, A2DP (SBC, AAC) |
| Control and others | Reverb foot switch, STAGEPAS Editor (iOS/Android app) |
| DSP | SPX digital reverb (4 program, parameter control) |
| Speaker type | Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed |
| Frequency range (-10dB) | 37 Hz – 20 kHz |
| Coverage area | H 170° x V 30° |
| Components (LF) | Powered subwoofer: 12” (30 cm) Cone |
| Components (HF) | Line array speaker: 1.5” (3.8 cm) Cone × 10 |
| Power rating (Dynamic) | 1000W (Powered subwoofer: 810W, Line array speaker: 190W) |
| Maximum output level (1m; on axis) | 119 dB SPL |
| Power requirements | 100V 50Hz/60Hz, 110V/120V 60Hz, 220V-240V 50Hz/60Hz |
| Power consumption | 25 W (Idle), 85 W (1/8 power) |

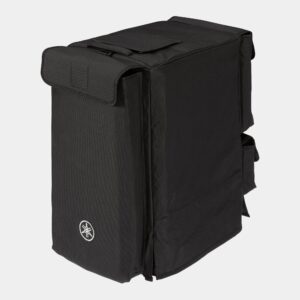

| Accessories | Power cord x 1, Cover x 1 |
| Options | Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF) |
| Handle | Top of powered subwoofer x1 |
| Dimensions (W x H x D) | System: 334 x 2,000 x 418 mm (maximum), Line array: 67 x 582 x 66 mm, Subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 66 mm (each) |
| Weight | System: 23.0 kg (maximum), Line array: 1.8 kg, Subwoofer: 20.0 kg, Spacer: 0.6 kg (each) |
