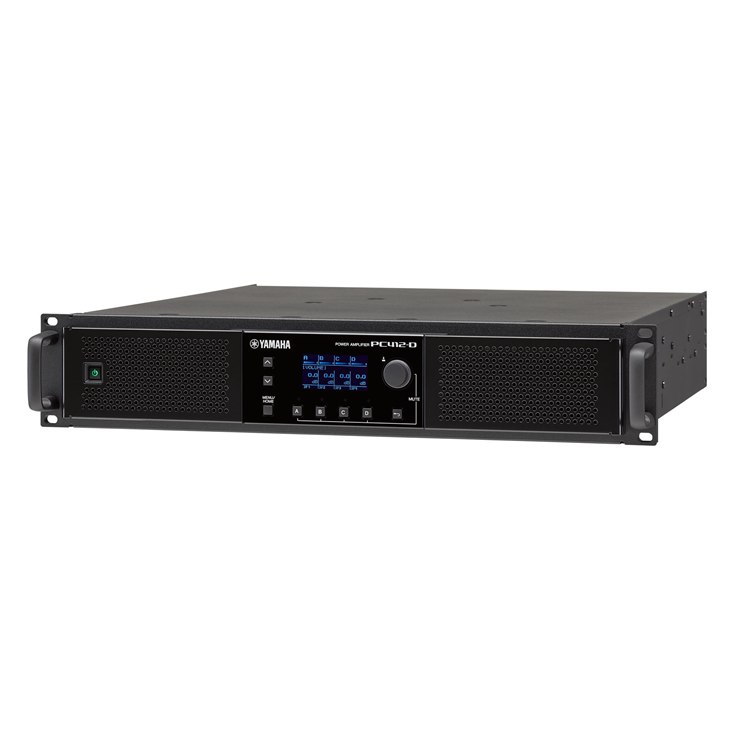

Yamaha PC-D / DI Series PC412-D
The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. PC-D / DI series are also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide customized remote controls if required. 1200W x 4 at 8Ω.
- 4 x 1200W at 8Ω
- 20 x 8 powerful input matrix function
- Sampling frequency is up to 96k
- 16ch Dante input/output
- Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
- Yamaha speaker presets
- Remote control via ProVisionaire Touch/Control
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
| Yamaha PC412-D Specifications | |
|---|---|
| Output Power (1kHz, Non-clip, All Channels Driven) | |
| 16Ω | 600W x 4 |
| 8Ω | 1200W x 4 |
| 4Ω | 1900W x 4 |
| 2Ω | 2500W x 4 |
| 8Ω (Bridge) | 3800W x 2 |
| 4Ω (Bridge) | 5000W x 2 |
| Amplifier Class | Class D (Single-ended) |
| THD | 0.01% (8Ω, 1kHz, 10W), 0.1% (4Ω, Half power) |
| Frequency Response | +0.5 / -1.5 dB (20Hz–20kHz, 8Ω, 1W) |
| Crosstalk | ≤ -60dB (8Ω, 1kHz, Half power) |
| S/N Ratio | 112dB (Gain = 32dB, A-weighted) |
| Voltage Gain / Sensitivity | 32dB / +10.0dBu 26dB / +16.0dBu 38dB / +4.0dBu 28dB / +14.0dBu |
| Protection Circuits | Load: Output mute, limiter, DC shutdown Amp: Thermal, over-current, over-voltage PSU: Thermal, over-voltage/current |
| Cooling | 3x Variable-speed fans (front-to-rear) |
| Max Input Voltage | +28dBu |
| Input Impedance | 20kΩ (balanced) |
| Sampling Frequency | 96kHz |
| A/D & D/A Converters | 24-bit linear |
| Dante Interface | 16×16, Redundant, 96–44.1kHz, 0.25–5ms latency |
| Processors | 20×8 Matrix, EQ, FIR/IIR Crossover, Delay, Limiters |
| Latency | Analog: 1.5ms Dante: 1.8ms (96kHz) |

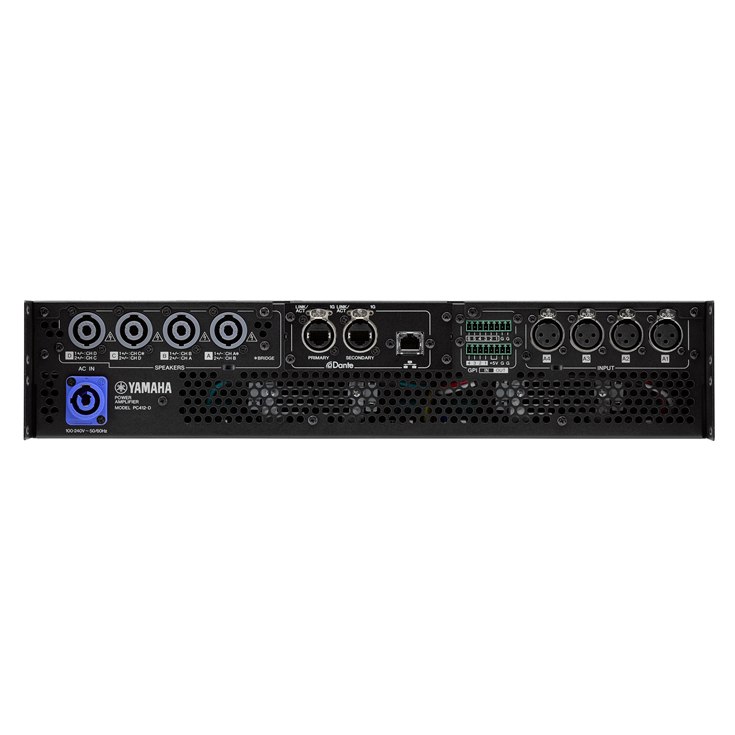

| I/O Connectors | XLR (In) x4 Dante (etherCON) x2 SpeakON x4 RJ45 (Control) x1 |
| Power Connector | PowerCON 20A |
| GPIO | 2x Euroblock (GPI x4, GPO x6, +5V) |
| Indicators | Power, Signal, Limit, Protect/Mute |
| Power Requirements | 100–240V, 50/60Hz |
| Power Consumption | 1850W (2Ω), 190W (Idle), 12W (Standby) |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions (W x H x D) | 480 x 88 x 528 mm |
| Weight | 16.0 kg |
| Included Accessories | Manual, Power Cable, Air filters, Grills, Handles, GPIO plugs |
