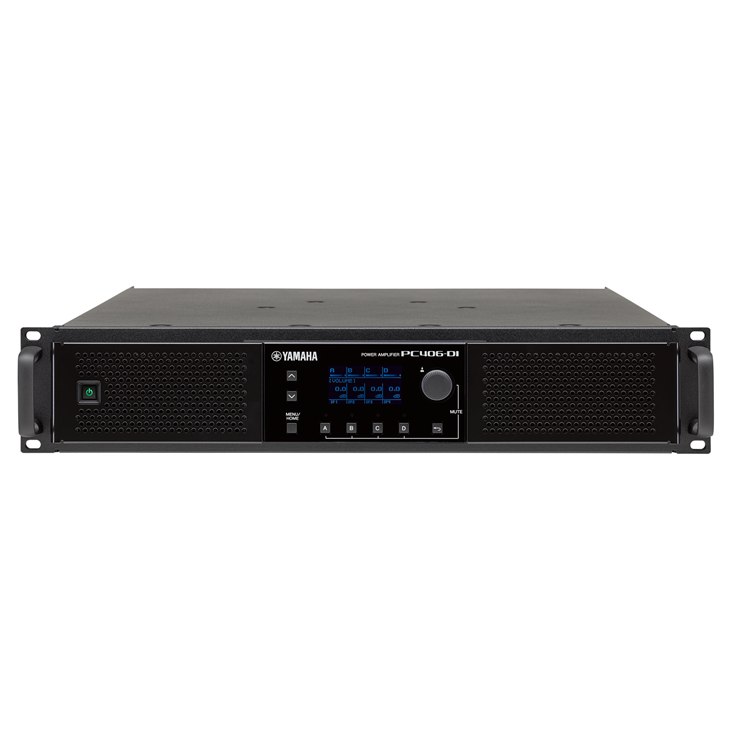

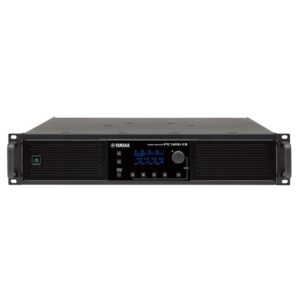

pc406-di_front02_735x735_41d7fbd51c9861fe2ca19571066e6b0b

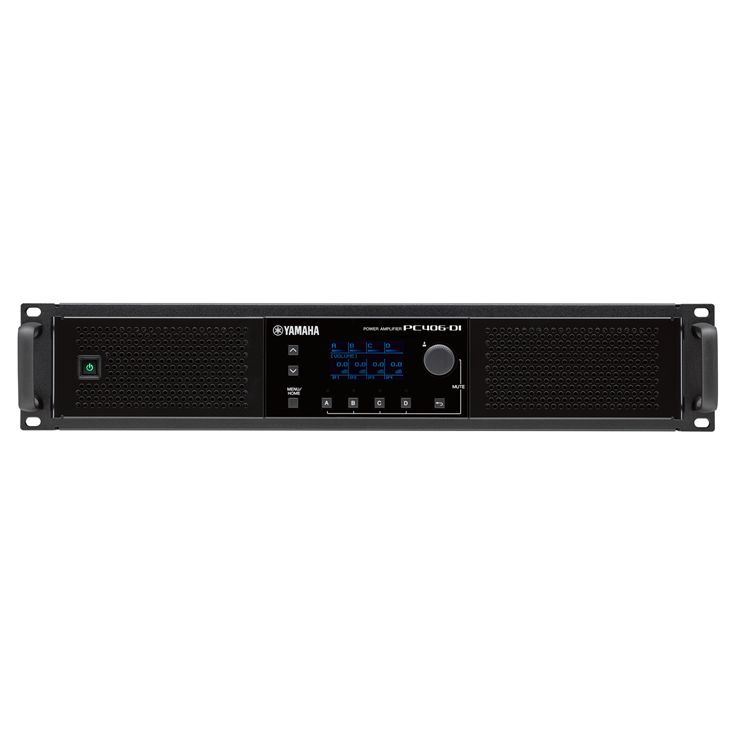

pc406-di_index_735x735_30761271a40182d447f11923141666e4

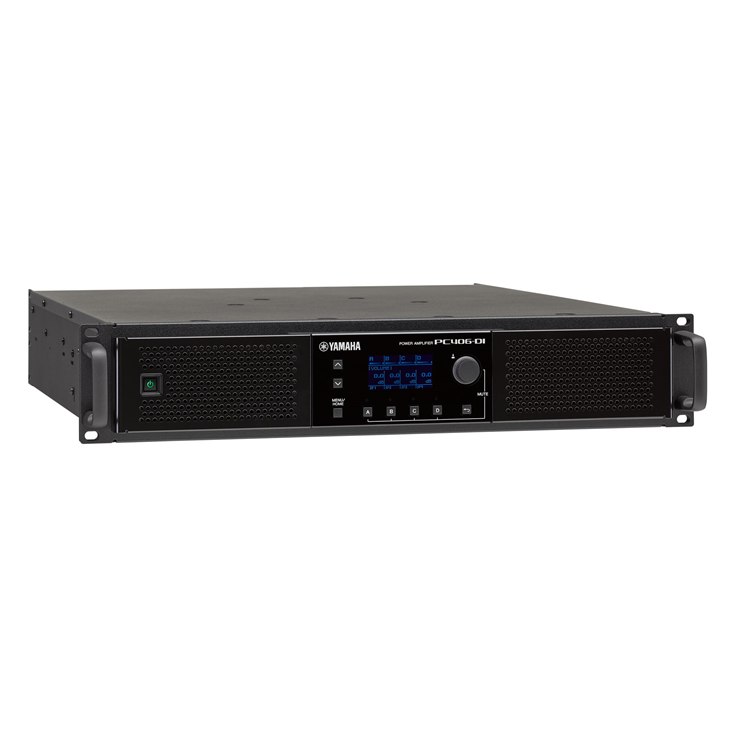

pc406-di_qtr_left_735x735_148c9556b564ede0e75ef7584f3de642
pc406-di_qtr_right_735x735_197cbc3fbdcbf6f9fdeeda839bd10d5a

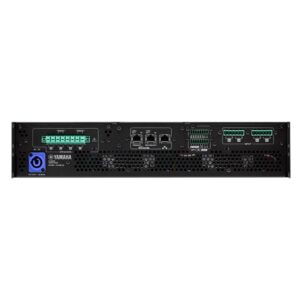

pc406-di_rear_735x735_f6ee160efc779a79c6bb02f3e3fda78d

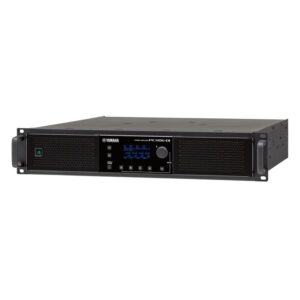

Yamaha PC-D / DI Series PC406-DI

0 out of 5
( Atsiliepimų dar nėra. )

The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. PC-D / DI series are also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide customized remote controls if required. 600W x 4 at 8Ω. Switchable for low and high impedance speaker systems.

  • 4 x 600W at 8Ω, 4 x 600W at 100V/70V
  • 20 x 8 powerful input matrix function
  • Sampling frequency is up to 96k
  • 16ch Dante input/output
  • Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
  • Yamaha speaker presets
  • Remote control via ProVisionaire Touch/Control

Teirautis telefonu

+37069873838

darius@combo.lt

Facebook Twitter Linkedin
Availability: Išankstinis užsakymas Categories , , Tags ,

Aprašymas

General specifications PC406-DI
Output Power; 1kHz, Non-clip, 20msec Burst, All channels driven 16Ω: 400W x 4, 8Ω: 800W x 4, 4Ω: 1200W x 4, 2Ω: 1600W x 4, 8Ω (BRIDGE mode): 1600W x 2, 4Ω (BRIDGE mode): 2400W x 2, Hi-Z (70V mode): 800W x 4, Hi-Z (100V mode): 800W x 4
Amplifier class Class D, Single ended output
Total harmonic distortion 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven)
Frequency response +0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru)
Crosstalk ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)
S/N ratio 112dB (8Ω, Gain setting = 32dB, A-weighted)
Voltage Gain/Sensitivity 8Ω Volume max: 32.0dB/+10.0dBu (Gain setting: 32dB), 26.0dB/+16.0dBu (Gain setting: 26dB), 38.0dB/+4.0dBu (Gain setting: +4dBu), 28.0dB/+14.0dBu (Gain setting: +14.0dBu)
Protection circuit Load protection: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically)
Amplifier protection Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically)
Power supply protection Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown
Cooling 7 step variable speed fan x 3, front to rear airflow
Maximum input voltage +28dBu
Input impedance 20kΩ (balanced)
Sampling frequency rate 96kHz
A/D D/A Converters AD: 24-bit linear; DA: 24-bit linear
Dante Interface Channel count 16 IN with Dante Redundancy, 16 OUT
Sampling frequency 96/88.2/48/44.1kHz
Dante latency 0.25/0.5/1/2/5ms
Bit depth 32/24bit
Processors 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 – 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter
Latency Analog Input to Speakers: 1.5msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.8msec (fs=96kHz), 1.9msec (fs=88.2kHz), 2.5msec (fs=48kHz), 2.7msec (fs=44.1kHz)
I/O Connectors Analog Input Euro block 6pin x 2 (4ch balanced input)
Digital I/O Dante Interface: RJ45 x 2 (Redundant/Daisy Chain)
Speaker Output 7.62mm Euro block 8pin x 1
Control ports RJ45 x 1
AC AC inlet (powerCON 20A) x 1
Others Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)
Indicators Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED)
Power requirements 100V – 240V 50Hz/60Hz
Power consumption 1350W (1/8 MAX power, 2Ω, Pink noise at all channels), 120W (Idle), 65W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V)
Operating temperature 0°C to +40°C
Storage temperature -20°C to +60°C
Dimensions W 480mm (18.90 inch), H 88mm (3.46 inch): 2U, D 528mm (20.79 inch)
Net weight 13.5 kg (29.8 lbs)
Accessories Owner’s Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euro block plug 3.5mm 8p x 2, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4
