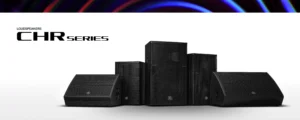

Yamaha CHR Series
Performance. Optimized.
The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with CHR12 and CHR10 for fixed installation and utilities, CHR15M and CHR12M designed for use as floor monitors, and CHR15 for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the CHR series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
| General specifications | CHR15M | CHR12M | CHR15 | CHR12 | CHR10 |
|---|---|---|---|---|---|
| Speaker type | 2-way Speaker, Bass-reflex | ||||
| Frequency range (-10dB) | 58 Hz – 20 kHz | 61 Hz – 20 kHz | 49 Hz – 20 kHz | 54 Hz – 20 kHz | 55 Hz – 20 kHz |
| Coverage area | H65° x V75° | H90° x V90° | H90° x V60° | H90° x V60° | H90° x V60° (Rotatable) |
| Crossover | 2.0 kHz | 1.5 kHz | 2.0 kHz | 2.0 kHz | 2.5 kHz |
| Nominal Impedance | 8Ω | ||||
| SPL Sensitivity (1W; 1m) | 98 dB SPL | 93 dB SPL | 95 dB SPL | 94 dB SPL | 95 dB SPL |
| Peak SPL (Calculated) | 125 dB SPL | 123 dB SPL | 125 dB SPL | 124 dB SPL | 122 dB SPL |
| LF | 15″ cone, Voice Coil: 3″, Magnet: Ferrite | 12″ cone, Voice Coil: 2.5″, Magnet: Ferrite | 15″ cone, Voice Coil: 2.5″, Magnet: Ferrite | 12″ cone, Voice Coil: 2.5″, Magnet: Ferrite | 10″ cone, Voice Coil: 2″, Magnet: Ferrite |
| HF | 1.75″ diaphragm, 1″ throat compression driver, Coaxial, Magnet: Ferrite | 1.75″ diaphragm, 1″ throat compression driver, Magnet: Ferrite | 1.4″ diaphragm, 1″ throat compression driver, Magnet: Ferrite | 1.4″ diaphragm, 1″ throat compression driver, Magnet: Ferrite | 1″ diaphragm, 1″ throat compression driver, Magnet: Ferrite |
| Power rating – NOISE | 275 W | 250 W | 250 W | 250 W | 175 W |
| Power rating – PGM | 550 W | 500 W | 500 W | 500 W | 350 W |
| Power rating – PEAK | 1,100 W | 1,000 W | 1,000 W | 1,000 W | 700 W |
| I/O connectors | SpeakON NL4MP × 3 (Parallel) | ||||
| Cabinet material | Plywood | ||||
| Finish | Durable Polyurea Painting, Black | ||||
| Handle | Side x1 | Side x1 | Side x2 | Top x1, Side x2 | Top x1 |
| Pole socket | Ø35 mm x1 (Side) | Ø35 mm x1 (Side) | Ø35 mm x2 (Bottom, 0° or -7°) | Ø35 mm x2 (Bottom, 0° or -7°) | Ø35 mm x1 (Bottom) |
| Rigging | – | – | Top x2, Rear x1 (M10 × 30–50 mm Eyebolts) | Top x2, Rear x1 (M10 × 30–50 mm Eyebolts) | Top x2, Rear x1 (M10 × 30–50 mm Eyebolts) |
| Floor Monitor Angle | 57° | 57° | – | – | – |
| Dimensions (W × H × D) | 642 × 369 × 505 mm (25.3″ × 14.5″ × 19.9″) | 500 × 343 × 454 mm (19.7″ × 13.5″ × 17.9″) | 432 × 692 × 405 mm (17.0″ × 27.2″ × 15.9″) | 359 × 578 × 340 mm (14.1″ × 22.8″ × 13.4″) | 305 × 494 × 300 mm (12.0″ × 19.5″ × 11.8″) |
| Net weight | 21.3 kg (47.0 lbs) | 15.6 kg (34.4 lbs) | 22.0 kg (48.5 lbs) | 17.1 kg (37.7 lbs) | 13.7 kg (30.2 lbs) |
| Options | – | – | U-bracket: UB-DXRDHR15 | U-bracket: UB-DXRDHR12 | U-bracket: UB-DXRDHR10 |
