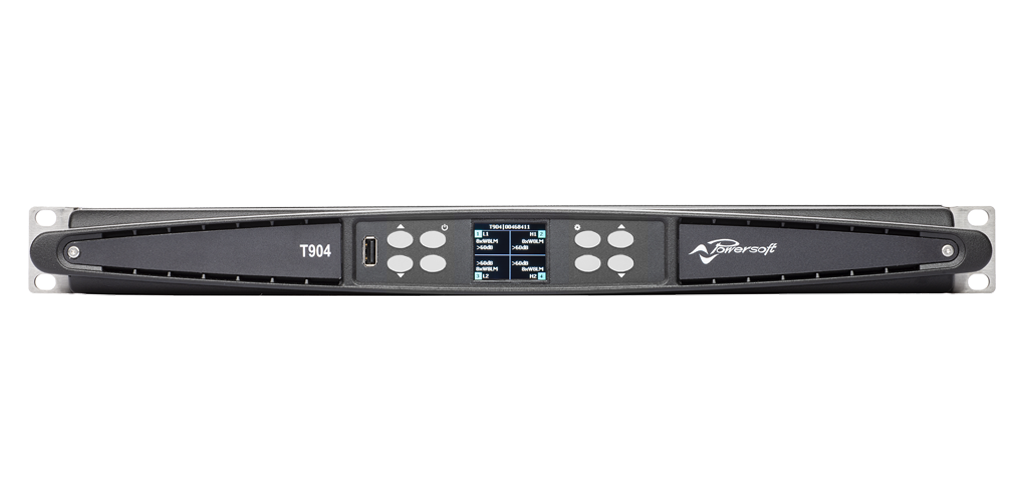

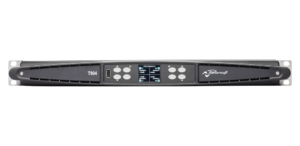

Stiprintuvas Powersoft T904
The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.
The T904 is designed to power bi-amped systems like stage monitors,2-way point source speakers, and 2-way line sources, as well as smaller subwoofers.

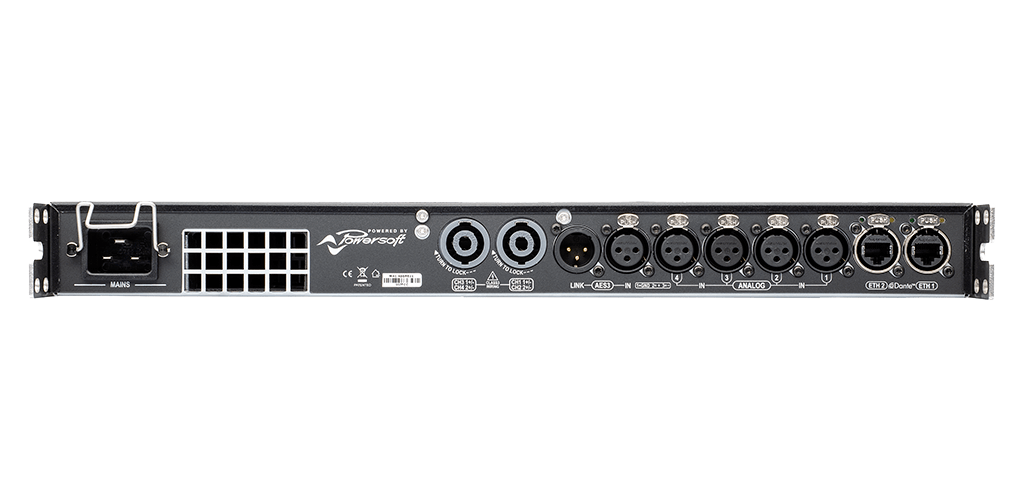

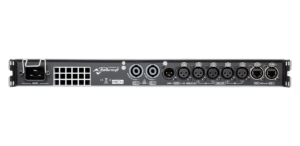

The amplifiers feature input via Dante, AES3, and analog. The Dante and AES3 solutions are optimized for daisy-chained distribution of 2-channel audio for distribution to many amplifiers without the need for external switches/repeaters/ splitters. A simple Dante system has a daisy chain with the mixing console at one end, a WiFi access point at the other end, and the amplifiers in-between.
MyPowersoft services are available for this product
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways.
- Full control with a PC running Armonía.
- Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters.
- Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control.
- Group controllable advanced EQ with raised cosine filters
- Large preset library
- Preset compatibility with X Series
- Very long FIR filters (42.6 ms)
- Control and monitoring through ArmoníaPlus
| GENERAL | ||
|---|---|---|
| Output power per channel | 1800 W @ 2 Ω 2000 W @ 4 Ω 1600 W @ 8 Ω |
|
| Bridge mode | 3600 W @ 4 Ω 4000 W @ 8 Ω |
|
| Max output voltage / current | ||
| Max unclipped output voltage @ 8 Ω | 175 Vpeak | |
| Current | 55 Apeak | |
| AC MAIN POWER | ||
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) | |
| Nominal power requirement | 100-240 V ±10%, 50-60 Hz | |
| Operating voltage | 90 V – 264 V | |
| Power consumption / Current draw | ||
| 1/8 of max output power @ 4 Ω | 120 V: 1702 W – 15 A | 230 V: 1676 W – 8.2 A |
| THERMAL | ||
| Thermal dissipation | 120 V | 230 V |
| 1/8 of max output power @ 4 Ω | 1713 BTU/h | 1624 BTU/h |
