Prodipe Solo UHF-M850 DSP
The M850 DSP Solo UHF system

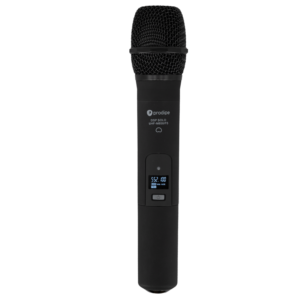

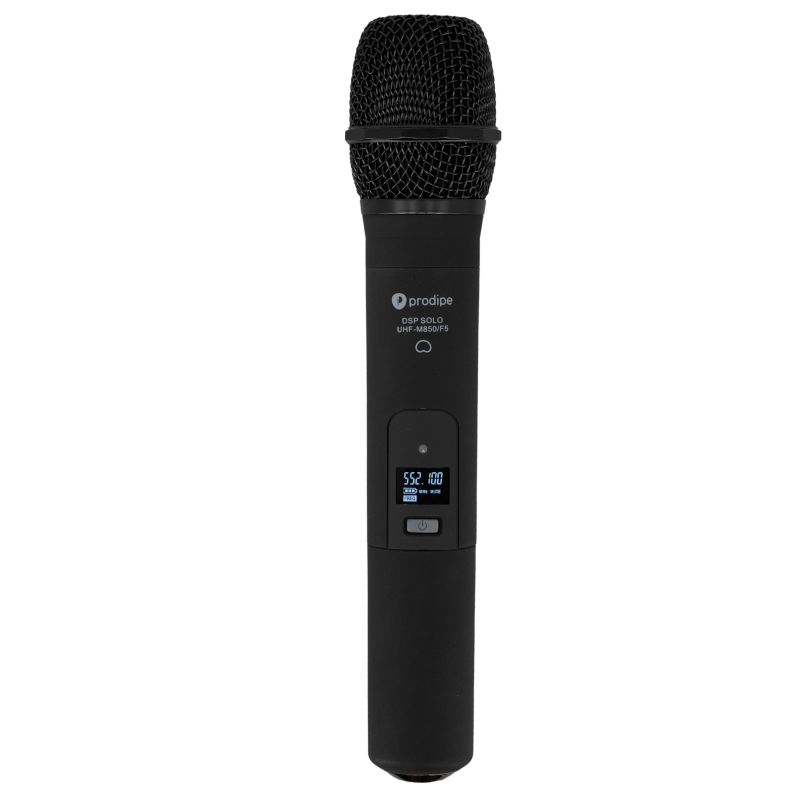

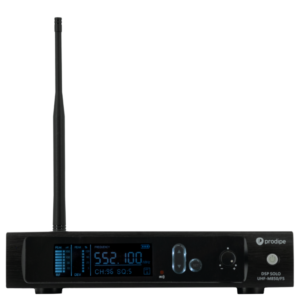

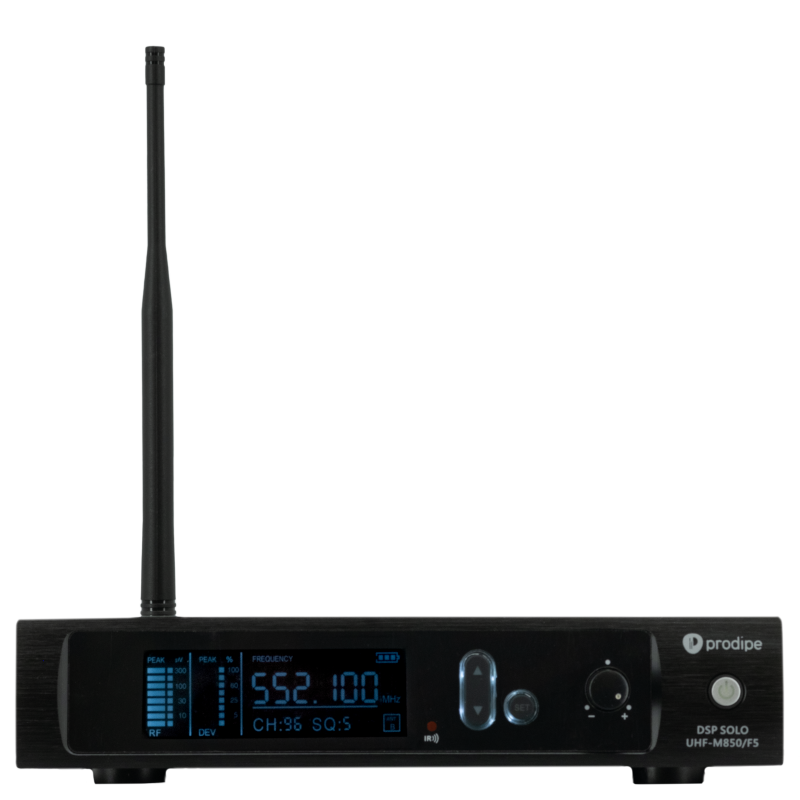

The M850 DSP Solo system consists of a UHF hand-held microphone with channel display and easily accessible mute button, and a metal receiver box with BNC antenna and balanced XLR output backed up by an unbalanced jack output (link).
- Automatic search and setting of 100 frequencies
- LCD display
- Infra-red pairing
- Allows simultaneous use of 8 M850 DSP Solo systems
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
| Specification | Details |
|---|---|
| Transmission Type | UHF |
| Nombre d’appareils max | 8 simultaneous UHF Solo systems |
| Number of Channels | 100 |
| Modulation | FM |
| Frequency Range | 630MHz to 655MHz (before 2021 version), 528MHz to 553MHz (F5 version) |
| Harmonic Distortion | Less than 0.1% |
| Range | 60m (Optimal outdoor conditions) |
| S/N Ratio | Greater than 96dB |
| Accessory Provided | Clamp |
| Power Supply (Utilization) | Backline, Singing / Voice |
| Transmitter Mic Type | Dynamic |
| Transmitter Directivity | Cardioid |
| Frequency Response (Transmitter) | 50Hz to 16kHz |
| Sensitivity (Transmitter) | -71dB ±3dB (0dB for 1V/Pa at 1kHz) |
| Power (Transmitter) | 10mW |
| Power Source (Transmitter) | LR6 (AA) 1.5V × 2 (Batteries not included) |
| Battery Life | Approx. 8h |
| Weight (Transmitter) | 250g (without battery) |
| Sensitivity (Receiver) | Less than -94dBm |
| Weight (Receiver) | 780g |
| Frequency Response (Receiver) | 30Hz to 20kHz |

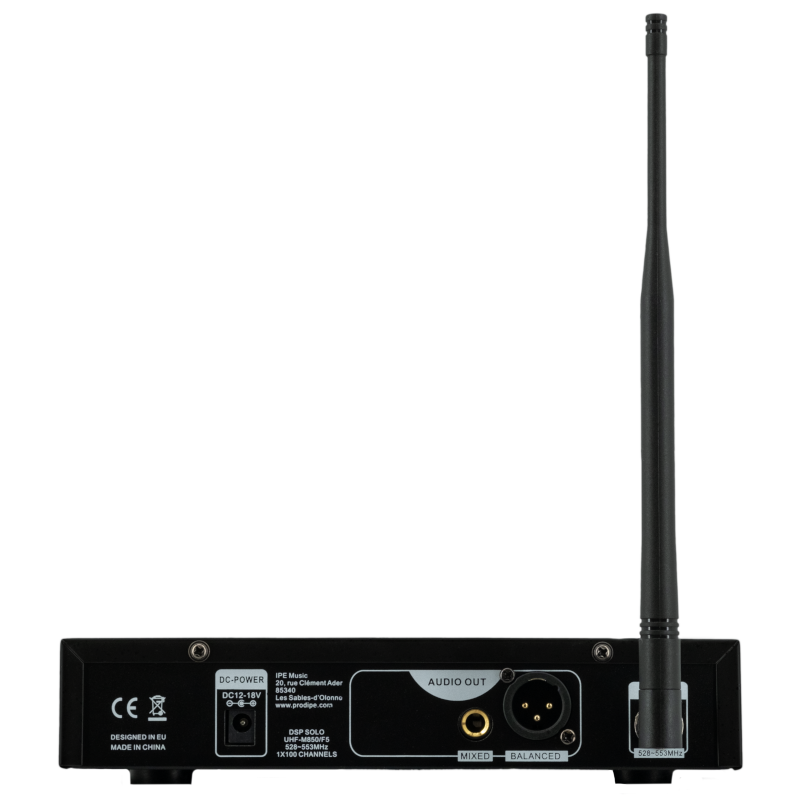

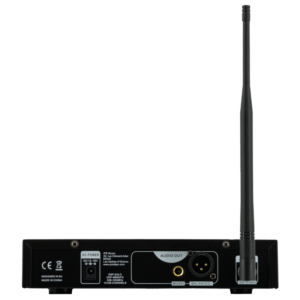

| Outputs | XLR (balanced), 6.35mm jack (unbalanced) |
