Aprašymas
| Specification | Details |
|---|---|
| Transmission Type | UHF |
| Nombre d’appareils max | 8 simultaneous UHF Solo systems |
| Number of Channels | 100 |
| Modulation | FM |
| Frequency Range | 553MHz to 578MHz (F5 version), 655MHz to 680MHz (version ≤ 2021) |
| Harmonic Distortion | Less than 0.1% |
| Range | 60m in optimal outdoor conditions |
| S/N Ratio | Greater than 96dB |
| Accessory Provided | Power supply |
| Power Supply (Utilization) | Backline, Singing / Voice |

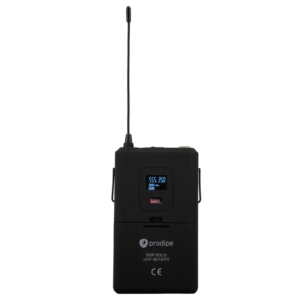

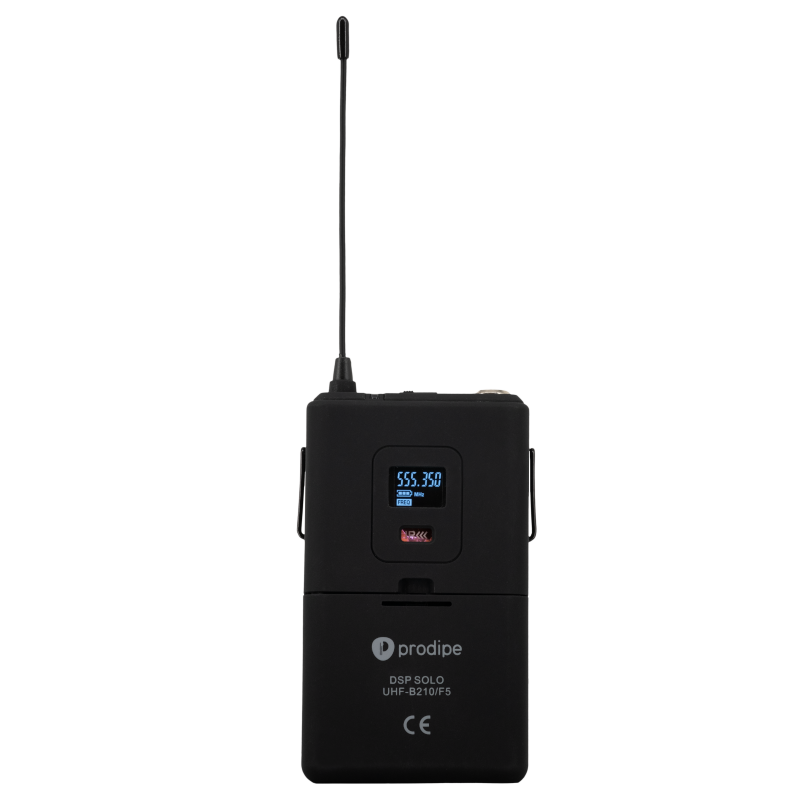

| Transmitter Power | 10mW |
| Power Source (Transmitter) | 2 × LR6 (AA) 1.5V batteries (Batteries not included) |
| Battery Life | Approx. 8h in optimal outdoor conditions |
| Weight (Transmitter) | 80g (without battery) |

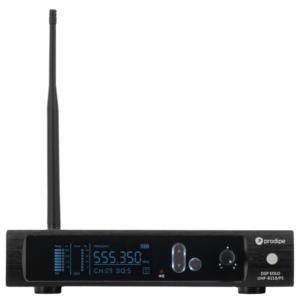

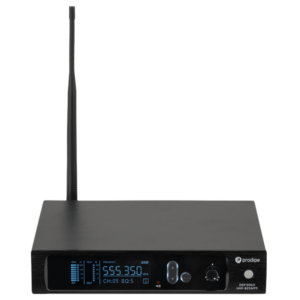

| Sensitivity (Receiver) | Less than -94dBm |
| Weight (Receiver) | 780g |
| Frequency Response (Receiver) | 30Hz to 20kHz |
| Outputs | XLR (balanced), 6.35mm jack (unbalanced) |

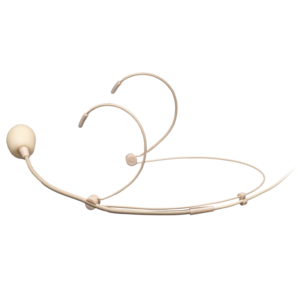

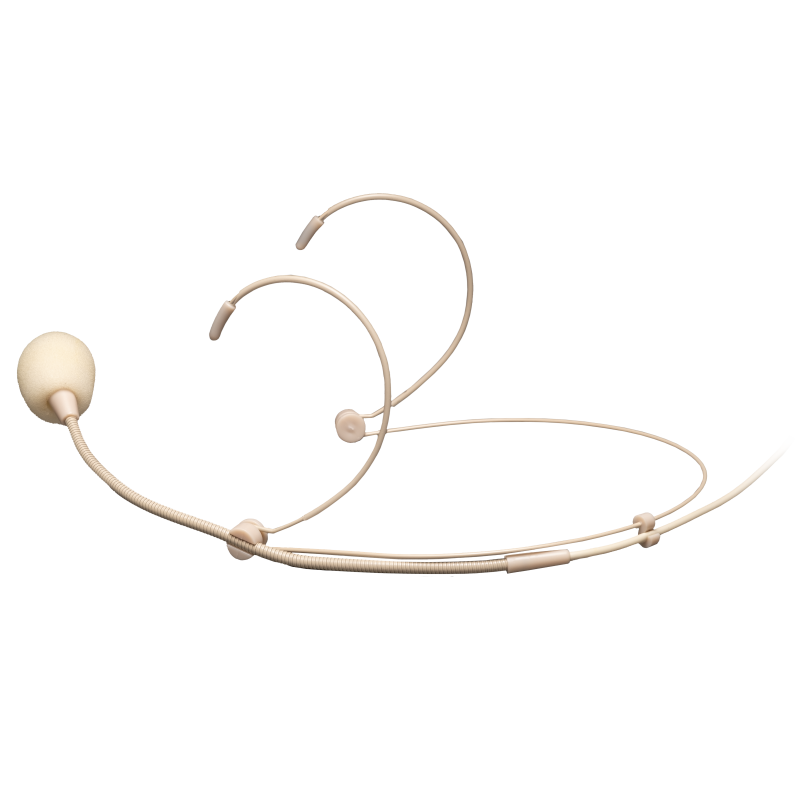

| Mic Type | Electret Condenser |
| Mic Directivity | Cardioïd |
| Mic Impedance | 2.2kΩ (at 1kHz) |
| Mic Sensitivity | -45dB ±3dB (0dB = 1V/Pa at 1kHz) |
| Mic Frequency Response | 100Hz to 12.5kHz (Headset mic) |
| Mic Cable Length | 1m |
