Mac Mah – AS Pro 15

Aprašymas

Specifications

• Type: Active PA speaker with Bass Reflex system
• Configuration: 2-way bi-amplified
• Integrated 2-channel mixer with independent volume control
• DSP: 24-bit resolution / 96 kHz sampling
• Amplifier type: LF Class D + HF Class AB
• RMS power: LF 650 W + HF 150 W
• Peak power: LF 1300 W + HF 300 W
• Total RMS power: 800 W
• Total peak power: 1600 W
• THD: ≤ 0.1%
• Max SPL: 127 dB
• Woofer: Ø15″ (380 mm)
• Tweeter: Ø1.75″ (44 mm) titanium
• Crossover frequency: 2 kHz
• Frequency response: 30 Hz – 20 kHz
• Dispersion: 90° (H) x 60° (V)
• Bluetooth 5.0 connectivity with TWS (Stereo pairing)
• Inputs: 2 x XLR combo / Jack Ø6.35 mm
• Aux input: TRS mini-jack Ø3.5 mm
• Outputs: CH1 / CH2 / Mix output via XLR
• Cabinet material: Wood (trapezoidal)
• Monitor use: Cutaway for floor placement
• Mounting: Ø35 mm base for standard speaker stand
• Suspension: Attachment points included
• Protections: Overheating, load, DC, over/undervoltage, progressive ignition
• Power supply: 220/230V / 60Hz
• Fuse: T5A / 250V (time-delay)
• Dimensions: 800 x 530 x 510 mm
• Weight: 28.6 kg

Presentation

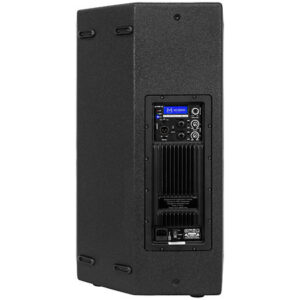

The Mac Mah AS Pro 15 is a high-performance active speaker designed for professionals in live sound, events, and mobile installations. With a robust 15″ woofer and 1.75″ titanium tweeter, it offers a wide frequency response from 30 Hz to 20 kHz and a maximum SPL of 127 dB, ensuring precise, impactful sound across all registers.

Its 800W RMS power, powered by a bi-amplified system (Class D LF + Class AB HF), and an advanced 96 kHz / 24-bit DSP deliver professional-grade sound with low distortion. Bluetooth 5.0 with TWS enables wireless stereo streaming, while the onboard 2-channel mixer with multiple inputs and outputs provides maximum connectivity and flexibility.

Built into a durable wooden cabinet with integrated monitor positioning and suspension points, the AS Pro 15 is both rugged and adaptable. Its protective features and efficient power handling make it ideal for intense live sessions or long-term installs, while the 35 mm stand mount ensures compatibility with standard rigs.

Information

• Number of ways: 2
• Applications: Live, Ambiance, Permanent installation, Stage monitor, Conference
• Speaker: 15″
• Tweeter: 1.75″
• RMS power: 800 W
• Peak power: 1600 W
• Acoustic pressure: From 120 to 130 dB
• Integrated mixer: Yes
• Effects: Audio signal processed by DSP
• Amplification type: Class D (LF), Class AB (HF)
• Streaming: Bluetooth with TWS
• Can be used on stand: Ø 35 mm (1 3/8″)
• Color: Black
• Weight: 28.6 kg
• Frequency response: 30 Hz – 20 kHz
• Packaging: Single unit
• Power supply: 220 V
