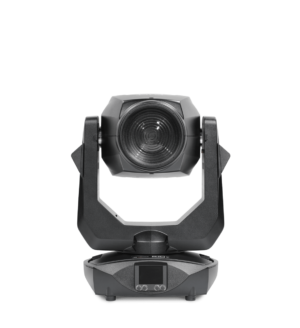

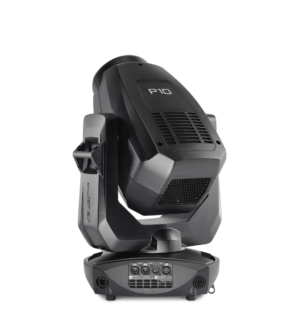

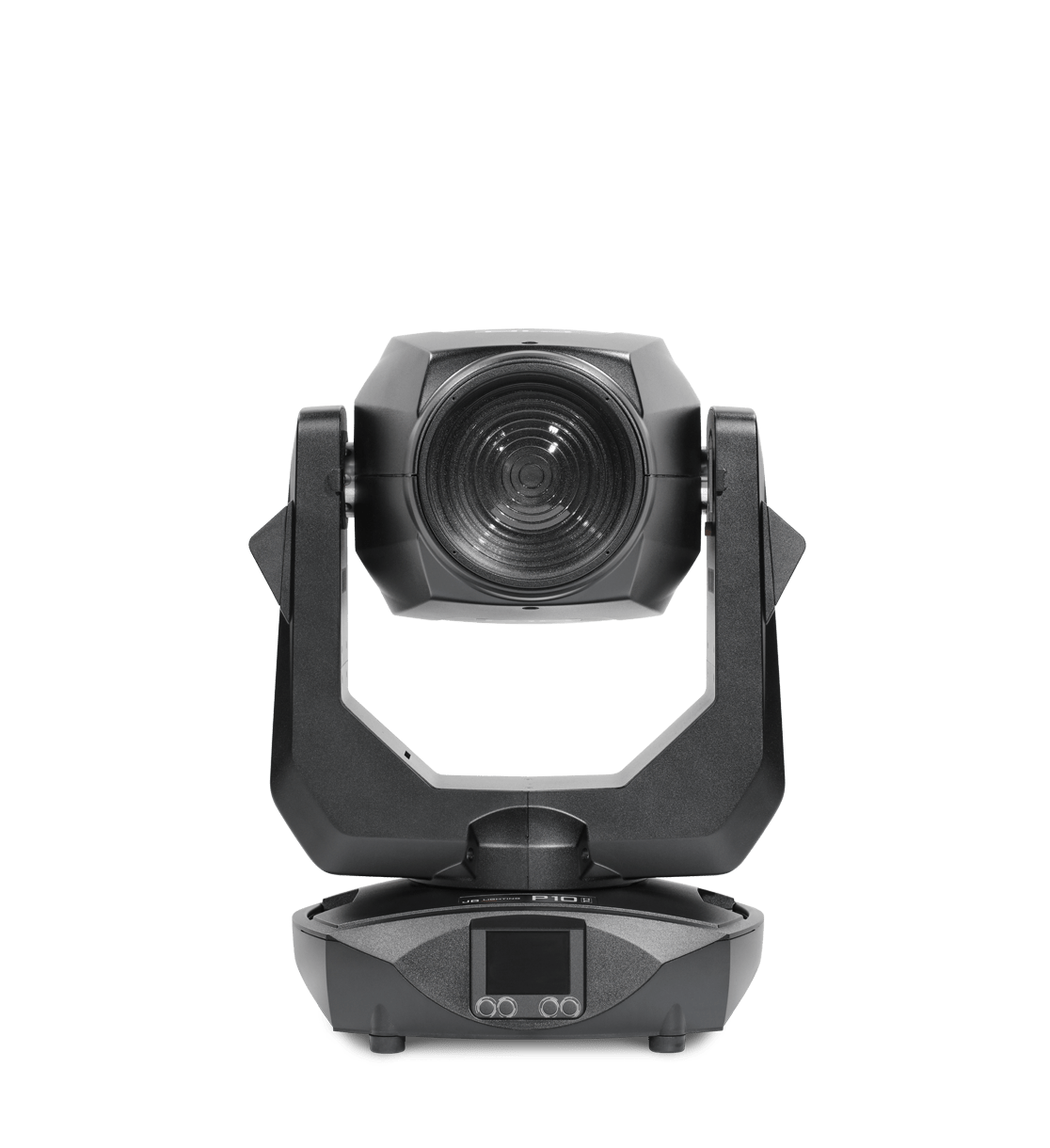

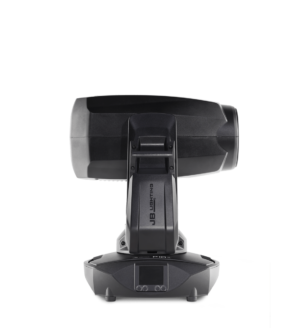

JB-LIGHTING P10 Fresnel-Washer
The P10 Wash with a zoom range of 12° – 70° and its 330W LED power is the perfect size for any stage. It is available in three light colors and is also very compact, luminous and extremely quiet. It makes no difference which of its many features are used in the P10 Wash.
Its very low weight of just 17 kg and its compact design make it convenient for one person to install – whether at events, festivals or for installation in theatres, TVs or at trade fairs.
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Optics and light source
- 330 W white light LED module

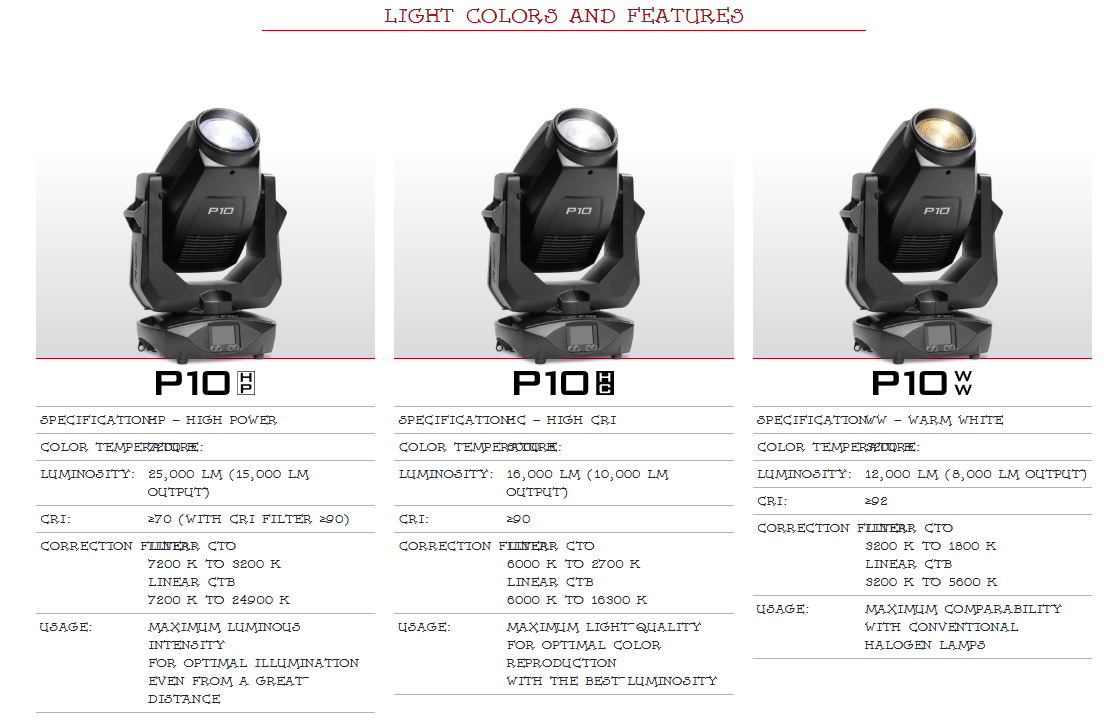

HP (High Power): 7200 K; 25,000 lm (15,000 lm Output); CRI ≥70
HC (High CRI): 6000 K; 16,000 lm (10,000 lm Output); CRI ≥90
WW (Warm White): 3200 K; 12,000 lm (8,000 lm Output); CRI ≥92 - Zoom range: 12° – 70° (1:5.9)
- Large Fresnel light exit lens: Ø 135 mm
- > 20,000 h service life
- Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz
Effects
- Framing module with 4 blades – each blade with separate motion and rotation control, the module can be rotated by 130° (+/- 65°), each blade independently by +/- 30°
- 1 gobo wheel with 7 rotatable, positionable and interchangeable gobos incl. multicolor gobo + open
- CMY color mixing unit for for rapid, even color mixing
- 1 color wheel with 5 full and half colors + open and linear color selection + CTB and high CRI filter (CRI ≥90) + linear CTO
- 1 colour wheel with 7 correction filters (3x CTB, 3x CTO + UV) + linear CTB
- 2 frost filters (Soft edge, 5° and Flood frost, 10°), infinitely adjustable – optional further frost stages possible
- Motorised, infinitely adjustable high-speed iris with 16 slats
- Electronic dimmer 0% – 100%
- Electronic shutter with pre-programmed pulse and ramp functions
- Zoom range 12° – 70° (1:5.9)
Movement
- High-resolution, powerful 3-phase stepper motors
- Precise, extremely rapid and quiet movements
- 540° Pan / 280° Tilt
Control and programming
- USITT DMX-512, RDM
- Ethernet interface with Art-Net and sACN
- Wireless DMX / RDM Lumen Radio CRMX TiMo
- LCD display with function keys and battery buffer, electronically rotatable
- Mini-USB for software update, etc
- Stand-alone mode, Master/Slave function
- Error analysis and DMX analysis
Construction
- Original JB-Lighting plug-in technology
- Robust, roadworthy design with 4 carrying handles
- Pan/Tilt transport lock
- Fan control for almost silent operation, 29 dB(A)
- Neutrik 5-pin XLR IN/OUT
- Neutrik etherCON IN/OUT
- Neutrik powerCON TRUE1 IN/OUT
- Prepared for mechanical path limitation
Rigging
- 2 Omega brackets with Original Camloc® fasteners for quick and convenient installation, with four different fastening options
Electrical & thermal specification
- Maximum power consumption 490 VA
- Supply voltage 100 V–240 V, 50/60 Hz
- Total heat dissipation (calculated): 1,672 BTU/hr
Mechanical specification
- Dimensions: W 398 x H 609 x D 264 mm
- Weight: 17 kg
Scope of delivery
- Schuko to powerCON TRUE1,
flexible rubber cable (2 m long, 3 x 1.5 mm²) - 2 Omega brackets
Accessories
- ZU0029 Travel limitation
- CASE40 Amptown double flight case
- CASE41 Amptown 4-compartment flight case
- BLOB02 Omega bracket standard
