HPA – Promix 8R

Aprašymas

Specifications

• Type: Analog Mixing Console
• Channels: 8
• Rotary Potentiometers: 6

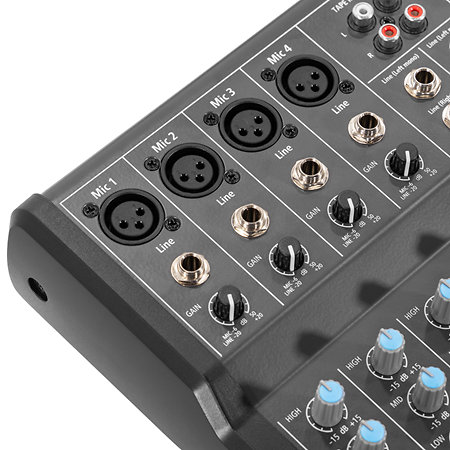

• Mic Inputs: 4 x XLR
• Line Inputs: 4 x 6.35 mm jack
• Stereo Inputs: 4 x 6.35 mm jack
• Frequency Response: 20 Hz – 20 kHz (+1/-1 dB)
• Distortion (THD): 0.005%
• Signal-to-Noise Ratio (SNR): > 80 dBu
• Noise: > -92 dBu
• Crosstalk: > 70 dBu
• Phantom Power: +48 V
• Mic Input Impedance: 2.2 kΩ
• Main Output (Balanced): XLR +26 dBU
• Main Output (Unbalanced): XLR +20 dBU
• Aux Out (Unbalanced): 6.35 mm jack +20 dBU
• FX Out (Unbalanced): 6.35 mm jack +20 dBU
• Equalizer:
  • High (12 kHz): ±15 dBU
  • Mid (2.5 kHz): ±15 dBU
  • Bass (80 Hz): ±15 dBU
• USB Audio Interface: 2 In / 2 Out
• USB Resolution: 24-bit
• USB Sampling Rate: 48 kHz
• Effects: Reverb + Echo (adjustable depth)
• MP3 Playback: Bluetooth / USB
• Recording: USB / SD card / Hard Disk

Presentation

The HPA Promix 8R is an analog mixing console crafted for sound technicians, DJs, and musicians who need a powerful and versatile solution. With 8 channels and 6 rotary potentiometers, it’s equipped with 4 XLR mic inputs (featuring +48 V phantom power), 4 line-level 6.35 mm jack inputs, and 4 stereo jack inputs for expanded audio routing options.

This mixer delivers excellent audio fidelity with a wide frequency response (20 Hz – 20 kHz), ultra-low distortion (0.005%), and high signal-to-noise performance. The 3-band EQ per channel allows fine-tuned control over your sound, and the built-in Reverb and Echo effects (adjustable depth) enhance vocals and instruments during live or studio sessions.

Balanced and unbalanced XLR outputs, along with auxiliary and FX outputs, provide flexible connectivity for any setup. A 2-in / 2-out USB 2.0 audio interface (24-bit / 48 kHz) makes it easy to connect to a computer for recording or live streaming. MP3 playback is supported via Bluetooth and USB, and you can also record directly onto SD cards or external hard drives.

Compact, durable, and loaded with features, the Promix 8R is perfect for live gigs, small studios, and fixed installations where quality, control, and portability matter most.

Information

• Number of Channels: 8
• Microphone Inputs: 4
• Instrument Input: Yes
• Line Inputs: 4
• Stereo Line Inputs: 4
• Master Output: XLR
• USB Port: Yes
• AUX Sends: 1
• FX Sends / Returns: Yes
• Equalizer: 3-Band
• Effects: DSP-processed audio, Reverb, Echo, Voice Effect
• Recording Medium: Internal, SD card, Hard Disk
• Media Player: USB
• Streaming: Bluetooth
• Motorized Faders: No
• Groups: Yes
• Wireless Connection: Bluetooth
• Power Supply: Power adapter (included)
