HPA – Promix 8

Aprašymas

Specifications

• Type: Analog Mixing Console
• Channels: 8
• Mic Inputs: 6 XLR
• Line Inputs: 4 x 6.35 mm jack
• Stereo Inputs: 2 x 6.35 mm jack
• Linear Faders: 6
• Frequency Response: 20 Hz – 20 kHz (+1/-1 dB)
• Distortion (THD): 0.005%
• Signal-to-Noise Ratio (SNR): > 80 dBu
• Noise Floor: > -92 dBu
• Crosstalk: > 70 dBu
• Phantom Power: +48 V
• Mic Input Impedance: 2.2 kΩ
• Main Output (Balanced): XLR +26 dBU
• Main Output (Unbalanced): XLR +20 dBU
• Aux Out (Unbalanced): 6.35 mm jack +20 dBU
• FX Out (Unbalanced): 6.35 mm jack +20 dBU
• Equalizer:
  • High (12 kHz): ±15 dBU
  • Mid (2.5 kHz): ±15 dBU
  • Bass (80 Hz): ±15 dBU
• USB Audio Interface: 2 In / 2 Out
• USB Resolution: 24-bit
• USB Sampling Rate: 48 kHz
• DSP Effects: 24 types with display and adjustable depth
• MP3 Playback: Bluetooth / USB / SD card
• Recording: To USB / SD card
• Rack Mountable: Yes (19″ rack optional)
• Dimensions (L x W x H): 432 x 376 x 106.2 mm

Presentation

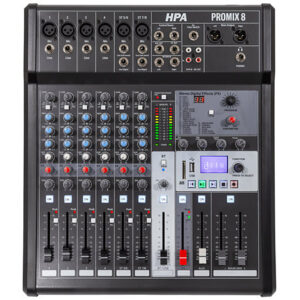

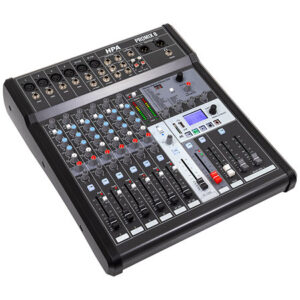

The HPA Promix 8 is an analog mixing console that redefines the standards of professional sound reinforcement. With 8 channels and an integrated multi-effects processor, it caters to everything from podcasting to live stage performances.

It features six smooth linear faders and a wide range of inputs—Mic, Line, and Stereo—providing exceptional mixing flexibility. With an ultra-low distortion rate of just 0.005% and a broad frequency response (20 Hz to 20 kHz), it ensures pristine audio fidelity.

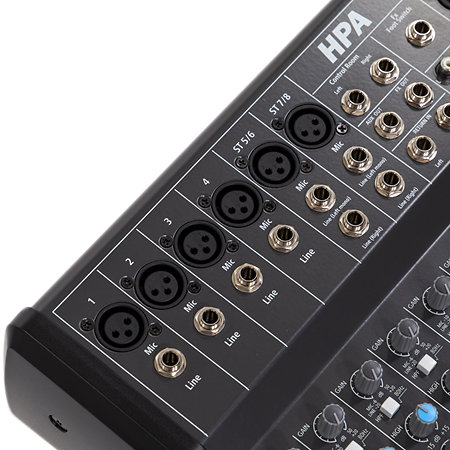

The console includes +48V phantom power, making it ideal for condenser microphones, while the 3-band EQ (High, Mid, Low) offers full tonal shaping control. On the rear panel, you’ll find both balanced and unbalanced outputs, perfect for versatile audio routing.

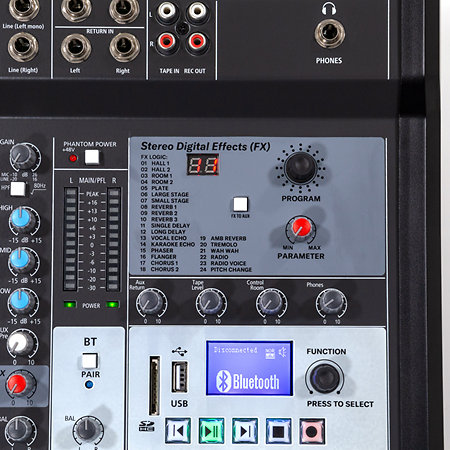

The built-in USB 2.0 audio interface allows direct connection to your computer, with 24-bit resolution and a 48 kHz sampling rate. Plus, the DSP section offers 24 studio-grade effects, each with adjustable depth via the display.

And for added convenience, the Promix 8 plays MP3s via Bluetooth, USB, or SD card, and allows direct recording to USB or SD. Rack mounting compatibility ensures seamless integration into any studio or live rig.

Information

• Number of Channels: 8
• Microphone Inputs: 6
• Instrument Input: Yes
• Line Inputs: 4
• Stereo Line Inputs: 2
• Output Channels: 2
• Master Output: XLR
• Recording Output: Yes
• USB Port: Yes
• AUX Sends: 1
• FX Sends/Returns: Yes
• Equalizer: 3-Band
• Effects: Multi-FX Processor
• External Effects Loop: Yes
• Audio Interface: USB 2.0
• Multitrack Recording: No
• Recording Media: USB, SD Card
• Media Player Support: SD Card, USB
• Streaming Capability: USB
• Motorized Faders: No
• DAW MIDI Control: No
• Lamp Connector: No
• Groups: No
• Wireless Connectivity: Bluetooth
• Power Supply: External Adapter (included)
