HPA – Promix 12

Aprašymas

Specifications

• Type: Analog Mixing Console
• Channels: 12
• Linear Faders: 10
• Mic Inputs: 10 x XLR
• Line Inputs: 8 x 6.35 mm jack
• Stereo Inputs: 2 x 6.35 mm jack
• Frequency Response: 20 Hz – 20 kHz (+1/-1 dB)
• Distortion (THD): 0.005%
• Signal-to-Noise Ratio (SNR): > 80 dBu
• Noise: > -92 dBu
• Crosstalk: > 70 dBu
• Phantom Power: +48 V
• Mic Input Impedance: 2.2 kΩ
• Main Output (Balanced): XLR +26 dBU
• Main Output (Unbalanced): XLR +20 dBU
• Aux Out (Unbalanced): 6.35 mm jack +20 dBU
• FX Out (Unbalanced): 6.35 mm jack +20 dBU
• Equalizer:
  • High (12 kHz): ±15 dBU
  • Mid (2.5 kHz): ±15 dBU
  • Bass (80 Hz): ±15 dBU
• USB Audio Interface: 2 In / 2 Out
• USB Resolution: 24-bit
• USB Sampling Rate: 48 kHz
• DSP Effects: 24 types with display and adjustable depth
• MP3 Playback: Bluetooth / USB / SD Card
• Recording: USB / SD card / Hard Disk
• Rack Mountable: 19″ Rack Adaptation (optional kit)
• Dimensions (L x W x H): 432 x 482 x 106.2 mm
• Weight: N/A

Presentation

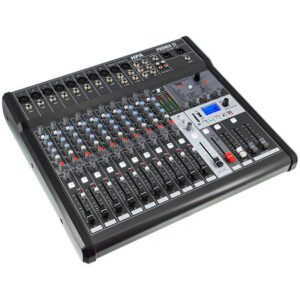

The HPA Promix 12 is a professional-grade analog mixing console that offers precision, versatility, and excellent sound quality for live shows, studio sessions, podcasts, and more. With 12 channels, 10 linear faders, and a rich selection of inputs (Mic, Line, and Stereo), it ensures intuitive mixing and wide compatibility.

Equipped with +48 V phantom power and a 3-band EQ per channel, the Promix 12 allows refined tonal control. It features a comprehensive connectivity suite including XLR balanced/unbalanced outputs, Aux and FX sends, and USB/SD/Bluetooth playback and recording.

A built-in DSP module with display provides 24 studio-grade effects, from reverbs to modulations, all customizable to suit your sound. The console’s USB 2.0 interface (24-bit / 48 kHz, 2 In – 2 Out) allows seamless integration with digital workflows, ideal for content creators and streamers.

Whether you are managing live sound or recording at home, the HPA Promix 12 brings pro-level performance in a compact and rack-mountable design. Its optional 19″ rack kit makes it easy to integrate into permanent setups.

Information

• Number of Channels: 12
• Microphone Inputs: 10
• Instrument Input: Yes
• Line Inputs: 8
• Stereo Line Inputs: 2
• Output Channels: 1
• Master Output: XLR
• Record Output: Yes
• AUX Sends: 1
• FX Sends / Returns: Yes
• Equalizer: 3-Band
• Effects: Multi-FX Processor
• External Effects Loop: Yes
• Multitrack Recording: No
• Recording Medium: USB / SD Card / Hard Disk
• Media Player: USB, SD Card
• Streaming: Bluetooth
• Motorized Faders: No
• Groups: No
• Rack-Mountable: Yes (optional kit)
• Power Supply: Power adapter (included)
