HPA – Promix 10

Aprašymas

Specifications

• Type: Analog Mixing Console
• Channels: 10
• Mic Inputs: 8 XLR
• Line Inputs: 6 x 6.35 mm jack
• Stereo Inputs: 2 x 6.35 mm jack
• Linear Faders: 8
• Frequency Response: 20 Hz – 20 kHz (+1/-1 dB)
• Distortion (THD): 0.005%
• Signal-to-Noise Ratio (SNR): > 80 dBu
• Noise Floor: > -92 dBu
• Crosstalk: > 70 dBu
• Phantom Power: +48 V
• Mic Input Impedance: 2.2 kΩ
• Main Output (Balanced): XLR +26 dBU
• Main Output (Unbalanced): XLR +20 dBU
• Aux Out (Unbalanced): 6.35 mm jack +20 dBU
• FX Out (Unbalanced): 6.35 mm jack +20 dBU
• Equalizer:
  • High (12 kHz): ±15 dBU
  • Mid (2.5 kHz): ±15 dBU
  • Bass (80 Hz): ±15 dBU
• USB Audio Interface: 2 In / 2 Out
• USB Resolution: 24-bit
• USB Sampling Rate: 48 kHz
• DSP Effects: 24 types with display and adjustable depth
• MP3 Playback: Bluetooth / USB / SD card
• Recording: USB / SD card / HDD
• Rack Mountable: Yes (optional 19″ rack kit)
• Dimensions (L x W x H): 432 x 428 x 106.2 mm

Presentation

The HPA Promix 10 is an analogue mixing console that redefines the standards of professional sound reinforcement. Featuring 10 channels and a multi-effects processor, it offers a full range of sonic possibilities, from podcasting to live performances.

The unit is rich in features, including 8 linear faders and various inputs such as MIC, line, and stereo, allowing you to mix with precision and flexibility. The precision engineering is also evident in its technical specifications: a frequency response of 20 Hz to 20 kHz and minimal distortion of 0.005% ensure unparalleled audio fidelity.

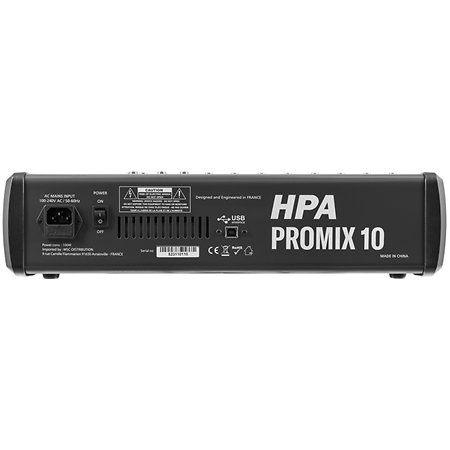

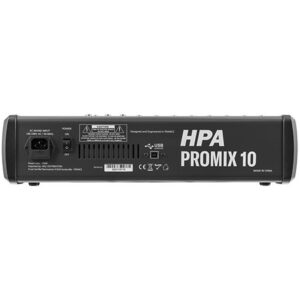

The addition of +48 V phantom power allows compatibility with a wide range of microphones, while its three-band EQ gives you total control over treble, midrange, and bass. The rear panel is equally impressive, with balanced and unbalanced outputs for flexible audio routing.

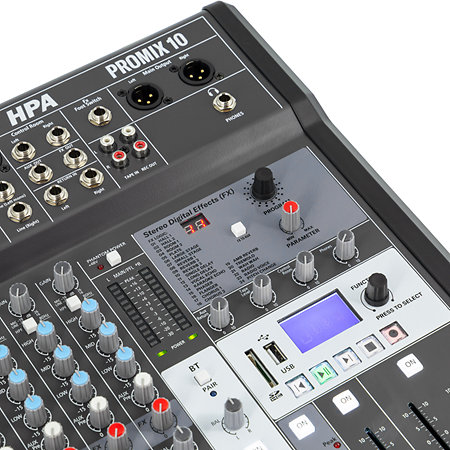

In addition, its USB 2.0 connectivity allows you to record directly to your computer. And that’s not all: the DSP with integrated display offers 24 types of effects, all deeply adjustable. You can even play MP3 files via Bluetooth, USB, or SD card, making this console a true Swiss Army knife of sound reinforcement.

Whether you are an experienced sound engineer or an enlightened amateur, the HPA Promix 10 offers all the features and sound quality needed to take your mixing to the next level. Its optional 19-inch rack kit ensures easy integration into any professional setup.

Information

• Number of Channels: 10
• Microphone Inputs: 8
• Instrument Input: Yes
• Line Inputs: Yes
• Output Channels: 2
• Master Output: XLR
• Recording Output: Yes
• AUX Sends: 1
• FX Sends/Returns: Yes
• Equalizer: 3-Band
• Effects: Multi-FX Processor
• External Effects Loop: Yes
• Multitrack Recording: No
• Recording Media: USB, SD Card
• Media Player Support: USB, SD Card
• Streaming Capability: Bluetooth
• Motorized Faders: No
• Groups: No
• 19″ Rack: Kit sold separately
• Power Supply: External Adapter (included)
