HPA – Hybrid-4C

Aprašymas

Specifications

• Type: Hybrid Class D Power Amplifier
• Number of Channels: 4
• Power Output:
  • 8 ohms: 4 × 400 W RMS
  • 4 ohms: 4 × 800 W RMS
  • 2.7 ohms: 4 × 1,200 W RMS
  • 100 V line: 4 × 200 W RMS
  • Bridge 8 ohms / 100 V: 2 × 1,500 W RMS
  • Bridge 4 ohms: 2 × 2,500 W RMS
• Amplification Module: Pascal Audio L-PRO2S
• Damping Factor: > 350
• Input Sensitivity: 1 V
• Input Impedance: 20 kΩ balanced / 10 kΩ unbalanced
• Signal-to-Noise Ratio (SNR): 119 dB
• THD (Total Harmonic Distortion): 0.05% @ 1 kHz
• Frequency Response: 20 Hz – 20 kHz ±0.5 dB

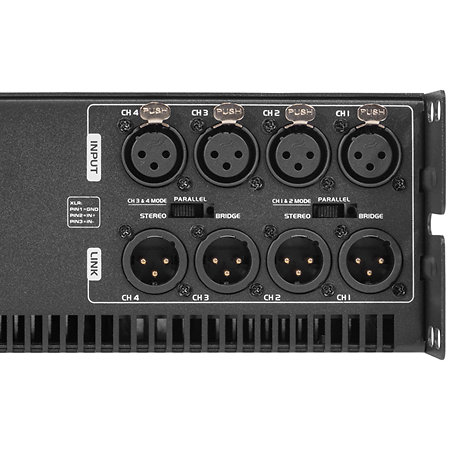

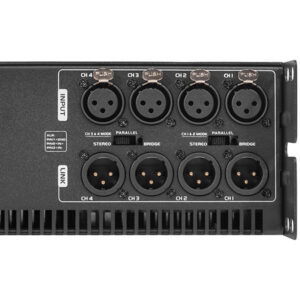

• Inputs: XLR

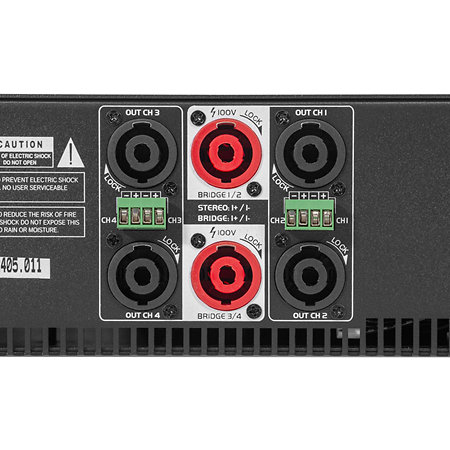

• Outputs: speakON + Euroblock
• Operating Modes: Stereo, Parallel, Bridge
• Protections: Electronic, Thermal, Electrical
• Cooling: Fan-cooled
• Soft Start: Yes
• Power Supply: 100–240 VAC / 50–60 Hz
• Dimensions (W × H × D): 482 × 88 × 408 mm
• Weight: 7 kg
• Rack Size: 19″ / 2U

Presentation

The HPA Hybrid-4C is a versatile four-channel power amplifier built using Class D hybrid technology, offering exceptional power and flexibility. With power output capabilities of 400 W RMS per channel at 8 ohms, 800 W RMS at 4 ohms, and 1,200 W RMS at 2.7 ohms, it meets the demands of various audio applications. In 100 V mode, it provides 4 × 200 W RMS, and in bridge mode, it delivers 1,500 W RMS at 8 ohms / 100 V and 2,500 W RMS at 4 ohms.

The Hybrid-4C integrates the Pascal Audio L-PRO2S amplification module, ensuring high-quality sound reproduction with superior damping control. With a damping factor greater than 350, it offers precise speaker control, ensuring clear, distortion-free audio. The input sensitivity is 1 V, and the amplifier supports both balanced (20 kΩ) and unbalanced (10 kΩ) input impedances, providing compatibility with a wide range of audio sources.

With a signal-to-noise ratio of 119 dB and a low THD of 0.05% at 1 kHz, the Hybrid-4C offers outstanding sound clarity and fidelity. The extended frequency response of 20 Hz to 20 kHz ±0.5 dB makes it suitable for a wide range of applications, from deep bass to crisp highs.

The amplifier features convenient XLR inputs and secure speakON and Euroblock outputs, ensuring seamless integration into any professional audio setup. The unit offers three operating modes: stereo, parallel, and bridge, adding flexibility for different configurations. Built-in electronic, thermal, and electrical protections guarantee reliability even under demanding conditions.

With efficient fan cooling and a soft start function, the HPA Hybrid-4C is designed to maintain consistent performance in various environments, while protecting both the amplifier and connected equipment.

Information

• Number of Channels: 4
• Amplification Type: Class D
• Weight: 7 kg
• Rack Size: 19″ / 2U
• Power Supply: 220 V (100–240 VAC, 50–60 Hz)
