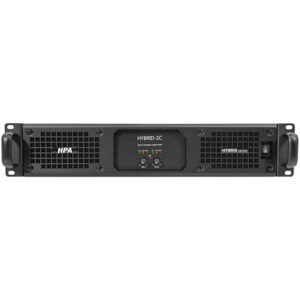

HPA – Hybrid-2C

Aprašymas

Specifications

• Type: Hybrid Class D Power Amplifier
• Number of Channels: 2
• Power Output:
  • 8 ohms: 2 × 400 W RMS
  • 4 ohms: 2 × 800 W RMS
  • 2.7 ohms: 2 × 1,200 W RMS
  • 100 V line: 2 × 200 W RMS
  • Bridge 8 ohms / 100 V: 1,500 W RMS
  • Bridge 4 ohms: 2,500 W RMS
• Amplification Module: Pascal Audio L-PRO2S
• Damping Factor: > 350
• Input Sensitivity: 1 V
• Input Impedance: 20 kΩ balanced / 10 kΩ unbalanced
• Signal-to-Noise Ratio (SNR): 119 dB
• THD (Total Harmonic Distortion): 0.05% @ 1 kHz
• Frequency Response: 20 Hz – 20 kHz ±0.5 dB
• Inputs: XLR
• Outputs: speakON + Euroblock
• Operating Modes: Stereo, Parallel, Bridge
• Protections: Electronic, Thermal, Electrical
• Cooling: Fan-cooled
• Soft Start: Yes
• Power Supply: 100–240 VAC / 50–60 Hz
• Dimensions (W × H × D): 482 × 88 × 408 mm
• Weight: 6.5 kg
• Rack Mount: 19″ / 2U

Presentation

The HPA Hybrid-2C is a compact yet powerful 2-channel power amplifier built using Class D hybrid technology. This model is designed to provide excellent energy efficiency and exceptional sound performance. With power output capabilities ranging from 400 W RMS per channel at 8 ohms to 1,200 W RMS per channel at 2.7 ohms, it is well-suited for professional environments that require reliable, high-power amplification.

Featuring the Pascal Audio L-PRO2S amplification module, the Hybrid-2C delivers precise speaker control, with a damping factor greater than 350, ensuring distortion-free audio reproduction. The amplifier is equipped with high input sensitivity (1 V) and offers both balanced (20 kΩ) and unbalanced (10 kΩ) input impedances, making it compatible with a wide range of audio sources.

With a signal-to-noise ratio of 119 dB and a low THD of 0.05% at 1 kHz, the Hybrid-2C ensures clean, clear audio across the full frequency range of 20 Hz to 20 kHz, maintaining superior fidelity. The device provides versatile connectivity with XLR inputs and speakON and Euroblock outputs, allowing seamless integration into various professional audio setups.

The amplifier operates in three modes: stereo, parallel, and bridge, offering the flexibility to adapt to different system configurations. Additionally, it features built-in electronic, thermal, and electrical protection systems, along with efficient fan cooling and a soft-start mechanism to safeguard the amplifier and connected components.

Information

• Number of Channels: 2
• Amplification Type: Class D
• Weight: 6.5 kg
• Rack Size: 19″ / 2U
• Power Supply: 220 V (100–240 VAC, 50–60 Hz)
