Elokance – Stage 18

Aprašymas

Specifications

• System Includes: 4x Satellites + 4x Subwoofers
• Total Power: 8800 W RMS
• Ideal For: Festivals, Concert Stages, Large Live Events

Satellite Characteristics

• Power Amplification: Yes
• Sensitivity: 0.25 mA
• Transducer BF: 4x 8″ (8WF600, 2″ coil)
• Transducer HF: 4.5″ TITANIUM (1.75″ coil)
• Directivity (HxV): 88° x 82° (rotary)
• SPL Max: 125 dB
• SPL Peak: 138 dB
• Structure: Birch Plywood
• Power Consumption: 460 W
• Net Weight: 30.5 kg
• Gross Weight: 32.5 kg

Subwoofer Characteristics

• Input Sensitivity: XLR 0 dBu
• Output Sensitivity: XLR 0 dBu
• Transducer BF: 18″ Ferrite (18WF2400, 4″ coil)
• SPL Max: 129 dB
• SPL Peak: 136 dB
• Structure: Birch Plywood
• Power Consumption: 575 W
• Mobility: Equipped with 4 castors

System Bandwidth

• Frequency Response: 28 Hz – 20 kHz (@ -10 dB)

Presentation

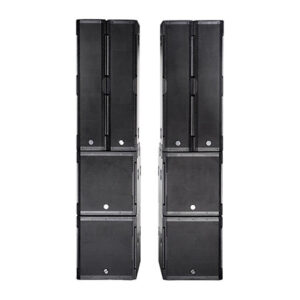

The elokance Stage 18 is a high-performance sound system designed for the most demanding live environments, including festivals and concert stages. With 4 satellite speakers and 4 subwoofers, the system delivers a massive 8800 W RMS of sound power, ensuring breathtaking coverage and exceptional clarity.

Each satellite is equipped with four 8″ mid-bass transducers and a 4.5″ titanium high-frequency driver on a rotary horn offering 88° x 82° dispersion. The satellites reach a peak SPL of 138 dB, making them perfect for high-energy performances.

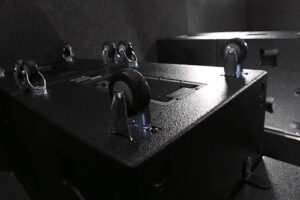

The 18″ ferrite subwoofers deliver ultra-deep bass with a 4″ voice coil, designed for clean and punchy low-end reproduction. Their peak SPL of 136 dB ensures your audience feels the full impact of the performance. Subwoofers are equipped with castor wheels for easy transport and stage mobility.

Constructed from durable birch plywood and powered by efficient Class D amplification, the Stage 18 system ensures long-lasting reliability and maximum output. DSP-based audio processing further enhances system control and sound quality.

Whether you’re managing a live music stage or outdoor festival, the elokance Stage 18 offers professional-grade performance with ease of use, rugged build, and versatile connection options.

Information

• Application: Ambiance, Front Speaker, Live Events
• Speaker Configuration: 4x 8″ + 1x 18″ per unit
• Tweeter: 4.5″ Titanium
• RMS Power: 8800 W
• Integrated Mixer: Yes
• DSP: Yes – Audio Signal Processed
• Acoustic Pressure: 130 – 140 dB
• Amplification Type: Class D
• Connectors: Jack (Mono), XLR (3-pin female)
• Subwoofer Included: Yes
• Line Array: No
• Frequency Response: 28 Hz – 20 kHz
• Power Supply: 220 V
