Elokance – OS SYSTEM
The elokance OS System is perfect for large outdoor events, delivering a total power of 7600W with 2 dual 21″ subwoofers and 2 passive 15″ heads, with amplifiers supplied. Ideal for outdoor festivals and concerts, it ensures wide sound coverage and optimal performance thanks to its neodymium transducers and robust plywood construction.
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
- System Type: Passive outdoor PA system
- Components: 2x 21″ Double Subwoofers + 2x 15″ Heads
- Total Power: 7600 W RMS
- Frequency Response: 22 Hz – 18 kHz (@ -10 dB)
- Sat Operating Range: 50 Hz – 18 kHz
- Sub Frequency Range: 22 Hz – 120 Hz
- Max SPL: 136 dB (continuous) / 147 dB (peak)
- Coverage @ 2 kHz: Horizontal 102° / Vertical 30°
- Coverage > 1 kHz: Horizontal 90° / Vertical 30°
Transducers
- HF: 4.5″ Neodymium, 1.4″ output with 3-way voice coil
- MF: 15″ Neodymium, 3″ voice coil
- BF: 2x 21″, 5″ voice coils
Power & Impedance
- Satellite Power: 800 W RMS
- Subwoofer Power: 3000 W RMS
- Satellite Impedance: 8 Ω
- Subwoofer Impedance: 2x 8 Ω

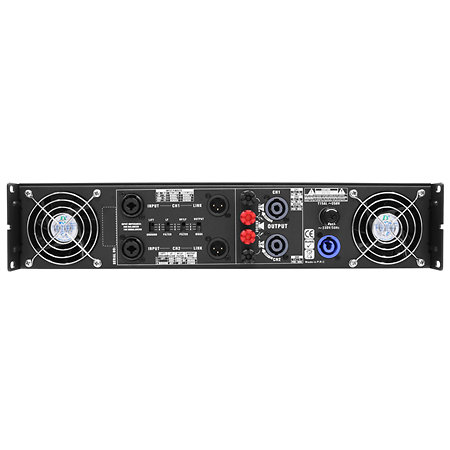

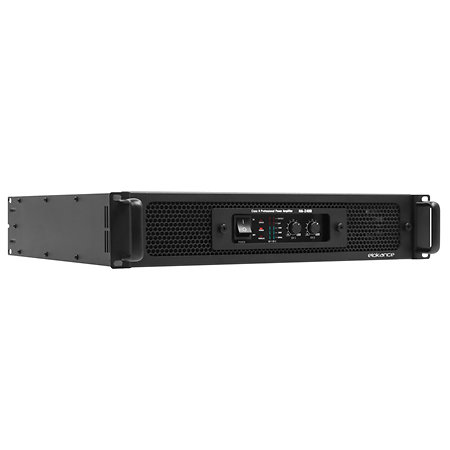

- Recommended Amplifiers: 2x elokance HA3600 + 2x elokance HA2400
Construction
- Enclosure Material: 18 mm and 20 mm plywood
- Finish: Textured paint
Dimensions & Weight
- Satellite Dimensions: 940 x 540 x 445 mm
- Subwoofer Dimensions: 1400 x 900 x 715 mm
- Weight: Not specified individually
Presentation

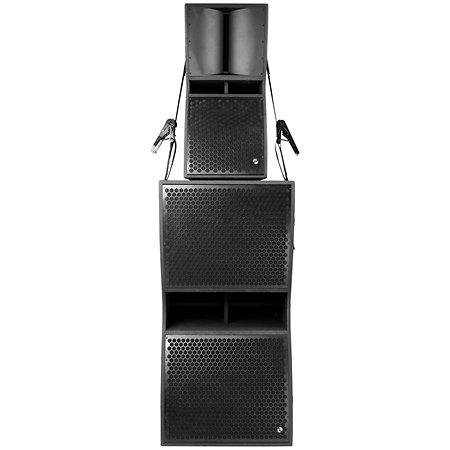

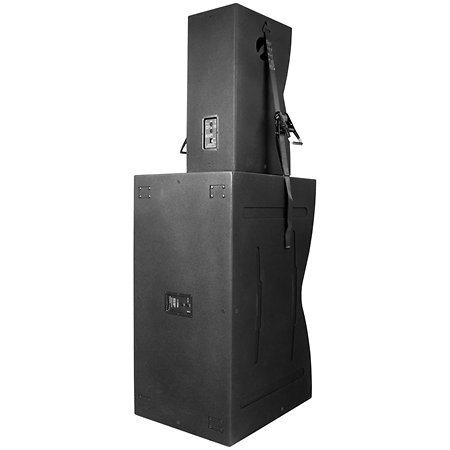

The elokance OS System is a premium-grade outdoor sound reinforcement solution, purpose-built for demanding live events, open-air concerts, and permanent installations where high output and clarity are essential.
Featuring 2 powerful 21” dual subwoofers and 2 high-performance 15” heads, the system delivers a total of 7600 W RMS, ensuring reliable sound coverage for large audiences and venues.
The subwoofers utilize large 5” voice coils to deliver exceptionally deep and tight bass down to 22 Hz, while the heads employ neodymium transducers for crisp and detailed mids and highs. The system boasts a wide frequency response of 22 Hz to 18 kHz and a maximum SPL of 147 dB peak for commanding sonic performance.
Engineered for flexibility, the system supports passive or bi-amp operation and is optimized for use with the elokance HA3600 and HA2400 amplifiers. Enclosures are built with high-quality plywood and protected with a durable textured paint for maximum resilience during outdoor use.
Sound dispersion is enhanced through a V-configuration design and wide coverage patterns (102° horizontal at 2 kHz), making it ideal for large, open environments. Whether it’s for a music festival, stadium, or long-term outdoor setup, the elokance OS System is a powerful and professional solution.
Information
- Application: Permanent Installation, Club DJ, Front Speaker
- Speaker Configuration: 2x 21″ Subwoofers, 2x 15″ Heads
- Tweeter: 4.5″
- RMS Power: 7600 W
- Impedance: 8 Ω
- Connectors: Speakon Female
- Outdoor Use: Yes
- Subwoofer Included: Yes
- Power Supply: Power adapter (included)
