Avolites Q3
Q3
The Avolites Ai Q3 is a small server with big features, including hardware EDID, 1TB of NVMe media storage and 1 x 4K and 2 x HD outputs. The Q3 is the perfect solution to power live events, installs and anywhere else that live video manipulation is required.
- 1 x 4k and 2 x HD outputs, plus a dedicated GUI output
- Hardware EDID on all outputs

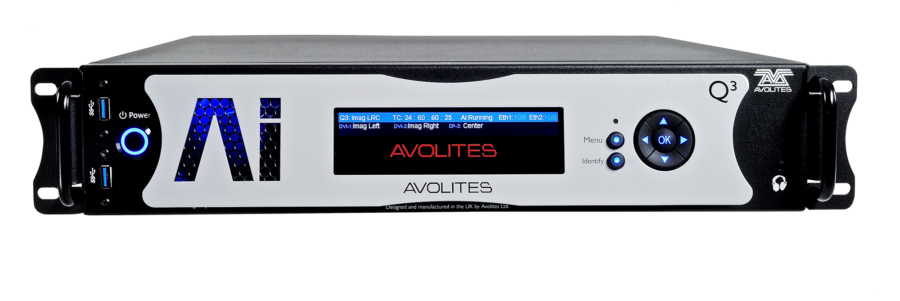

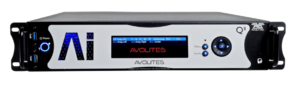

- Front panel screen for configuring outputs
Teirautis telefonu
+37069873838
darius@combo.lt
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Features
- Node-based programming for flexibility with Salvation
- Send or receive video over IP with NDI® by NewTek
- 3D projection mapping
- Supports Notch (license required)
- AutoBlend for easy projector blending setup
- AiM media transcoder
- Synergy with Avolites Titan

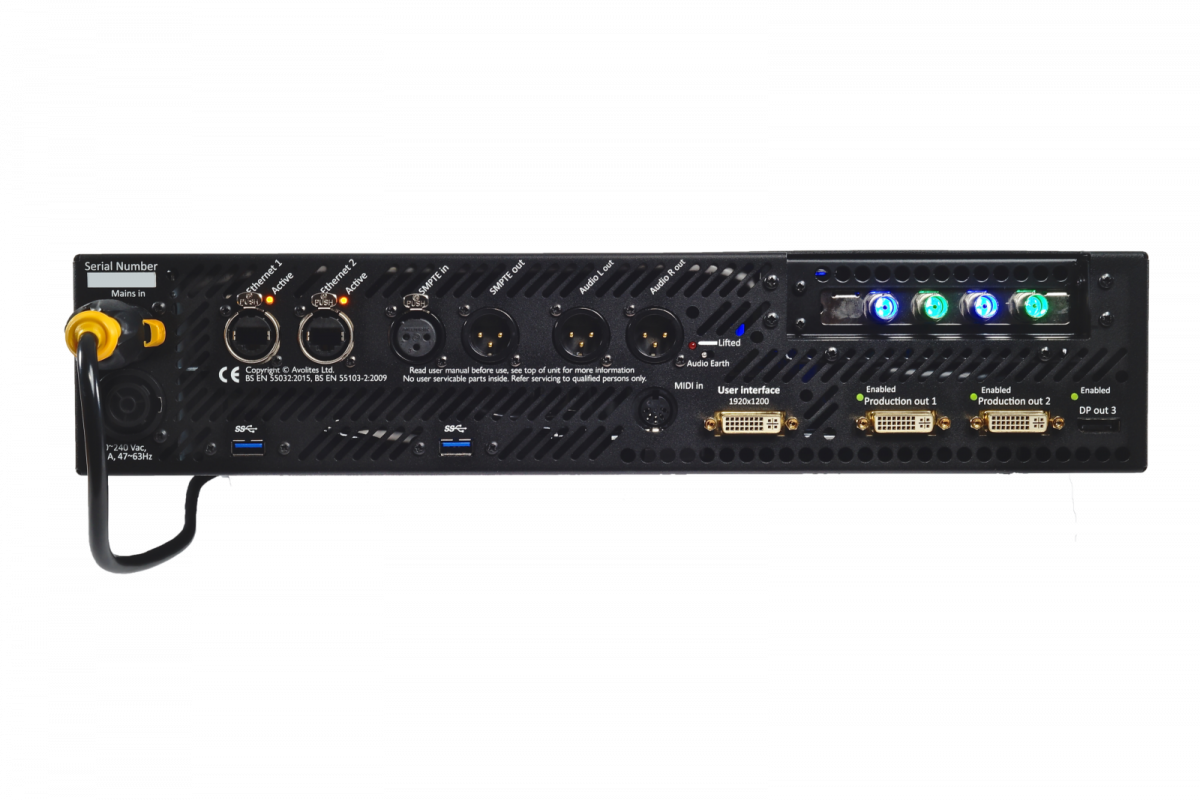

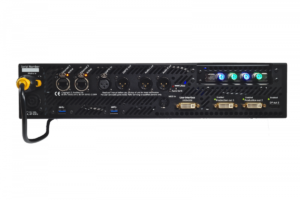

Video & Audio I/O
- Minimum 2 layers of video simultaneously to every output
- 1 x DVI dedicated GUI output (up to 1920×1200 @ 60Hz)
- 2 x HDMI production outputs (up to 1920×1200 @ 60Hz)
- 1 x HD production output (up to 3840×2160 @ 60Hz)
- Stereo balanced XLR audio output with ground lift
- XLR SMPTE input and loop out
- Video Sync BNC Genlock (optional)
Connectivity
- 1TB high-bandwidth media drive (3500 MB/s)
- MIDI In – 1 x 5-pin DIN
- DMX via ArtNet and sACN
- 2 x Gigabit LAN on etherCON
- PowerCon True1 in/thru
- Input voltage: 100–250 V, 50/60 Hz auto-ranging
- Power consumption: 800 VA (max)
Physical Specifications
| Weight | 16 kg |
| Size (with rack ears) | 490 x 88 x 520 mm |
| Rack Units | 2U |
