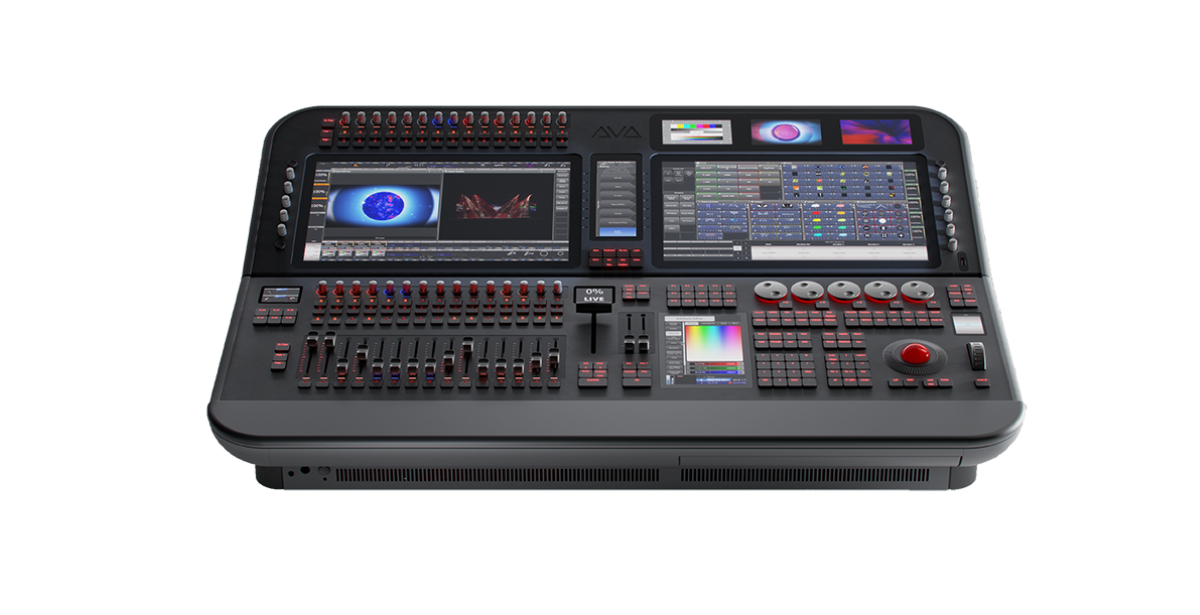

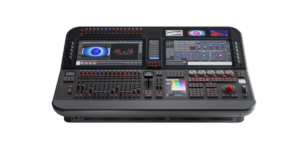

Avolites Diamond 9-215
0 out of 5
Our flagship console in a more compact 2 screen version
- 15 + 2 motorised touch-sensitive Penny & Giles faders – designer fader cap
- 40 Optical rotary assignable encoders with push function
- 2 x 15.6” 1000nits 1920*1080 capacitive touchscreens with adjustable brightness
- 3 x 4.3” 1000nits 800×480 preview touchscreens for media or workspaces
Teirautis telefonu
+37069873838
darius@combo.lt
Availability: Išankstinis užsakymas
Categories Apšvietimas, Apšvietimo valdymas
Tags Apsvietimas, Apsvietimo valdymas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Specifications
Features
- Generative, animation-based pixel mapping
- Quicksketch labelling for ultimate personalisation
- Powerful multi-user networking with any Titan console
- Create huge effects in seconds with Key Frame Shapes
- Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
- Expand DMX channel capacity with Titan Net Processors
- Synergy-ready – Add any Ai product for seamless video integration
Controls & Display
- 15 + 2 motorised touch-sensitive Penny & Giles faders with designer fader caps
- 11-segment RGB LED level indicator beside each fader
- 40 optical rotary touch-sensitive playback encoders with push function – designer knobs
- Independent paging for each playback section
- All programming buttons are RGB backlit Cherry® MX Low Profile switches
- Full custom backlit QWERTY keyboard in drawer (keys match program panel)
- Supports two additional HDMI 1920×1080 touchscreens
- Softkey menu touchscreen
- 5 custom RGB backlit optical attribute encoders
- T-Bar with 5 control buttons and colour LCD status screen
- 7” dual-touch high-brightness 800×1280 programming screen
- Dedicated level wheel, machined aluminium with colour LCD status screen
Physical Specifications
| Weight | 54 kg / 120 lbs |
| Dimensions (Screens Up) | 995 x 640 x 455 mm (39.2” x 25.2” x 17.9”) |
| Dimensions (Screens Down) | 995 x 705 x 240 mm (39.2” x 27.8” x 9.5”) |
| Flight Case Weight | 88.5 kg / 195.1 lbs |
| Flight Case Dimensions | 1120 x 950 x 380 mm |
