Aprašymas

Specifications

Features

• Generative, animation-based pixel mapping
• Quicksketch labelling for ultimate personalisation
• Powerful multi-user networking with any Titan console
• Create huge effects in seconds with Key Frame Shapes
• Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
• Expand DMX channel capacity with Titan Net Processors
• Synergy-ready – Add any Ai product for seamless video integration

Controls & Interface

• 15 motorised touch-sensitive faders with designer fader caps and RGB fader indicators
• 15 ultra high-resolution touch-sensitive playback encoders with push function and RGB encoder indicators
• 5 custom RGB backlit optical attribute encoders
• Programming buttons: RGB backlit, Cherry® MX Low Profile short-travel switches
• 2 x 14” 850 nits 1920×1200 capacitive touch main screens (foldable, adjustable brightness)
• Dedicated level wheel with on-screen level indication
• Full custom backlit QWERTY keyboard in drawer (matching program panel layout)
• LED desk reading light above screens and over rear panel

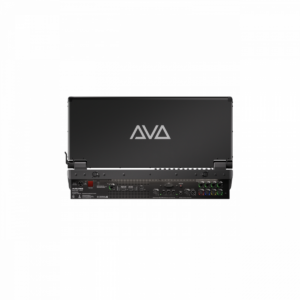

Connectivity

• 4 x isolated DMX outputs via 5-pin XLR connectors
• 4 x Neutrik XLR on primary network port
• 1 x Neutrik XLR on secondary network port (internally switched and managed)
• MIDI In, Loop & Out via DIN 5 connectors
• SMPTE RTU Timecode In and Loop Out via 3-pin XLR (transformer isolated)
• Foot trigger input and audio trigger input
• GPIO: 4 inputs and 4 outputs on 15-pin D-sub connector
• Supports 2 additional external DisplayPort 1920×1080 touchscreens

Physical Specifications
