Aprašymas

ArcSTRIP9 is designed as a compact and robust exterior lighting fixture, suitable for a wide range of wall-washing lighting applications. The sleek and modern design of this fixture allows for excellent integration into most kinds of architecture. Used in combination and powered by ArcDRIVE controllers, arcSTRIP9 is an extremely flexible lighting tool.

	arcSTRIP9RGB
Led source	9x2W (3R, 3G, 3B)
Lumen	544lm
Peak Intensity	1873cd
Input voltage	DC 12V (600mA)
Max Power	16,5W

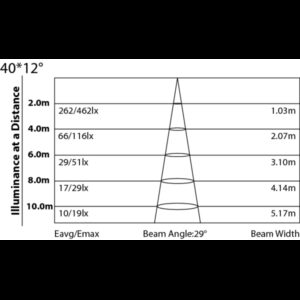

Optics	40×12° (30°)
DMX control channels	RGB, dimmer (0-100%)
Interface	DMX
Controllable sections	1
Mains connection	arcDrive436
Data connection	arcDrive436
Protection	IP66
Operating temperature	-40°C/+40°C
Housing material	Extruded aluminium
Housing color	Silver
Dimensions (WxHxD)	400x36x45 (mm)
Weight	0,8Kg
