Aprašymas

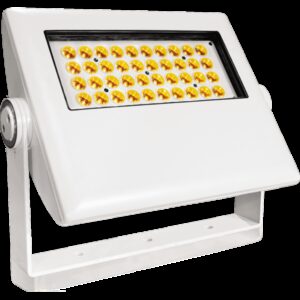

ARCFLOOD40 is a LED luminaire conceived for architectural lighting project of building facades and accent light, thanks to its high luminous output and versatility allowed by the design of external structure.
The light-source employs 40 high power 3W CREE LEDs, granting astonishing performance even for long-throw projection, representing a green replacement to the traditional discharge lamp outdoor projectors.
ARCFLOOD40 has been designed with the innovative screw-less design for the frontal panel, which allows an IP66 protection rate for Outdoor lighting projects.
The wide range of accessory optics allows to pass from a 6° narrow beam to 55° flood diffusion, providing the lighting designer with a indispensable tool for their projects.

	arcFLOOD40CW	arcFLOOD40WW	arcFLOOD40A
LED source	40x3W Cool white	40x3W Warm white	40x3W HiFlux amber
Lumen	4300lm	3200lm	2610lm
Peak Intensity	69400cd (12°)	51022cd (12°)	39787cd (12°)
Input voltage	AC 100V-240V	AC 100V-240V	AC 100V-240V
Max Power	115W	115W	115W
Optics	12° (6°, 30°, 55°)	12° (6°, 30°, 55°)	12° (6°, 30°, 55°)
DMX control channels	Dimmer (0-100%)	Dimmer (0-100%)	Dimmer (0-100%)
Interface	DMX	DMX	DMX
Controllable sections	1	1	1
Mains connection	3m cable (input only)	3m cable (input only)	3m cable (input only)
Data connection	3m cable (input/output)	3m cable (input/output)	3m cable (input/output)
Protection	IP66	IP66	IP66
Operating temperature	-40°C/+45°C	-40°C/+45°C	-40°C/+45°C
Housing material	Die-cast aluminium	Die-cast aluminium	Die-cast aluminium
Housing color	Off-White	Off-White	Off-White
Dimensions (WxHxD)	370x307x89 (mm)	370x307x89 (mm)	370x307x89 (mm)
Weight	4,2Kg	4,2Kg	4,2Kg
